12.7.2 Display examples
Each display type is divided into three sections: upper, middle and lower. The error
message area at the top of a display shows engine error messages.
For detailed descriptions of the displays, see the Operator’s Manual for the Yamaha
engine.

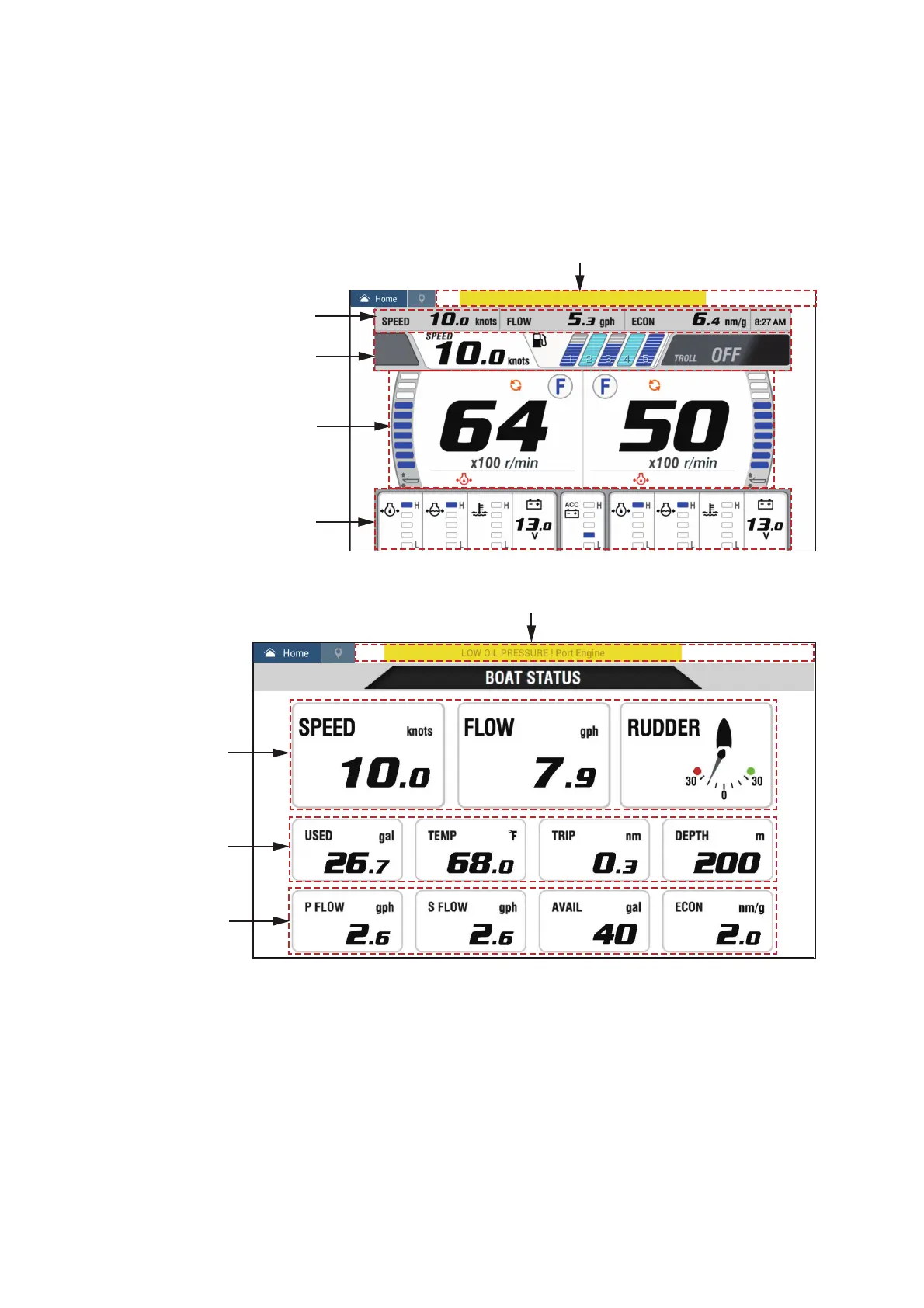

Engine combo display (example: twin engine)
Upper section 1
Middle section
(layout depends
on no. of engines)
Lower section
Upper section 2
CHECK SYSTEM! Starboard Engine
Error message area
Boat status display
Upper section
Middle section
Lower section
Error message area
