[Display Light Description]: Show or hide the light descriptions.
[Display Light Sectors]: Show or hide light sectors for fixed beacons.
[Display Routes]: Show or hide routes.
[Display Routes Bearings]: Show or hide route bearings.
[Display Soundings]: Show or hide depth soundings.
[Display Soundings in Red]: Spot soundings whose depths are lower than the value
selected on the [Shallower than...] menu are shown in red.
[Soundings in Red up to]: Select the value for the [Display Soundings in Red] menu
(setting range: 0.0, 3.3, 6.6, 9.8, 13.1, 16.4, 19.7, 23.0, 26.2, 29.50, 32.8, 49.2, 65.6,
98.4 ft).
[Obst. Depth Below Safety]: Show or hide obstruction depths under the safety depths.
[Display Seabed]: Show or hide seabed composition indication, for example, mud,
sand, rock.
[Cautionary Areas]: Show or hide the cautionary areas that appear on the chart.
[Reset Default Settings]: Select this menu item to restore default settings for the [Vec-
tor Chart] menu.
2.9.2 Control visibility of cartographic objects in S-52 charts

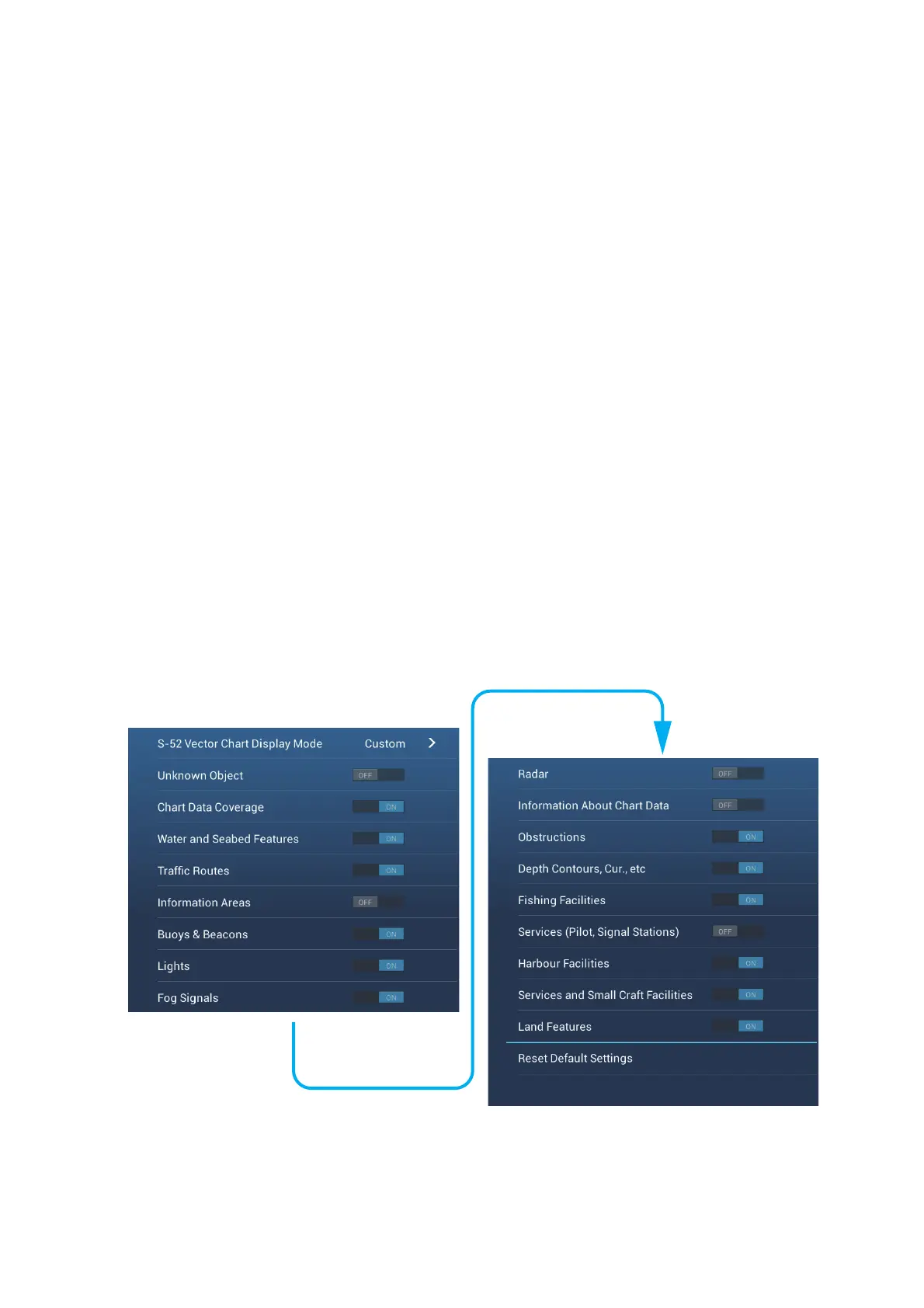

The [Settings]→[S-52 Display] menu controls the visibility of S-52 cartographic ob-
jects, for example, lights and fog signals.
[S-52 Vector Chart Display Mode]: Set the level of information to show on the chart.
The selections are [Custom], [Base], [Standard], [Other], and [Fishing]. The chart fea-
tures are turned on or off according to setting.
