12. INSTRUMENT-RELATED DISPLAYS
12-15
12.3.7 How to add an instrument display
Full screen, three-way split and four-way split screens are preset in this equipment. If
the displays do not meet your requirements, you may add custom displays as neces-
sary. You can have 10 full screen displays, and 10 3-way/4-way split screens.
1. Tap the instrument display to show the [Choice of Config Type] pop-up menu.
2. Tap [Add Page] to show the software keyboard.
Note: If you have reached the capacity for the screen configuration selected, [Add
Page] is grayed out. Remove an unnecessary page referring to"How to edit, re-
move an indication in an instrument display" on page 12-12.
3. Enter a name for the page then tap [9]. A blank page appears.
4. Tap the blank page to show the [Add Instrument] pop-up menu.
5. Tap a size in the applicable section
6. Repeat steps 4 - 5 to add other items.
7. After you have added all items required, tap the screen to show the [Add Instru-
ment] pop-up menu, then tap [End Edit] to finish.
The page name appears in the [Choice of The Config Type] pop-up menu.
8. if you need to rearrange the data, see section 12.3.2 and section 12.3.3.

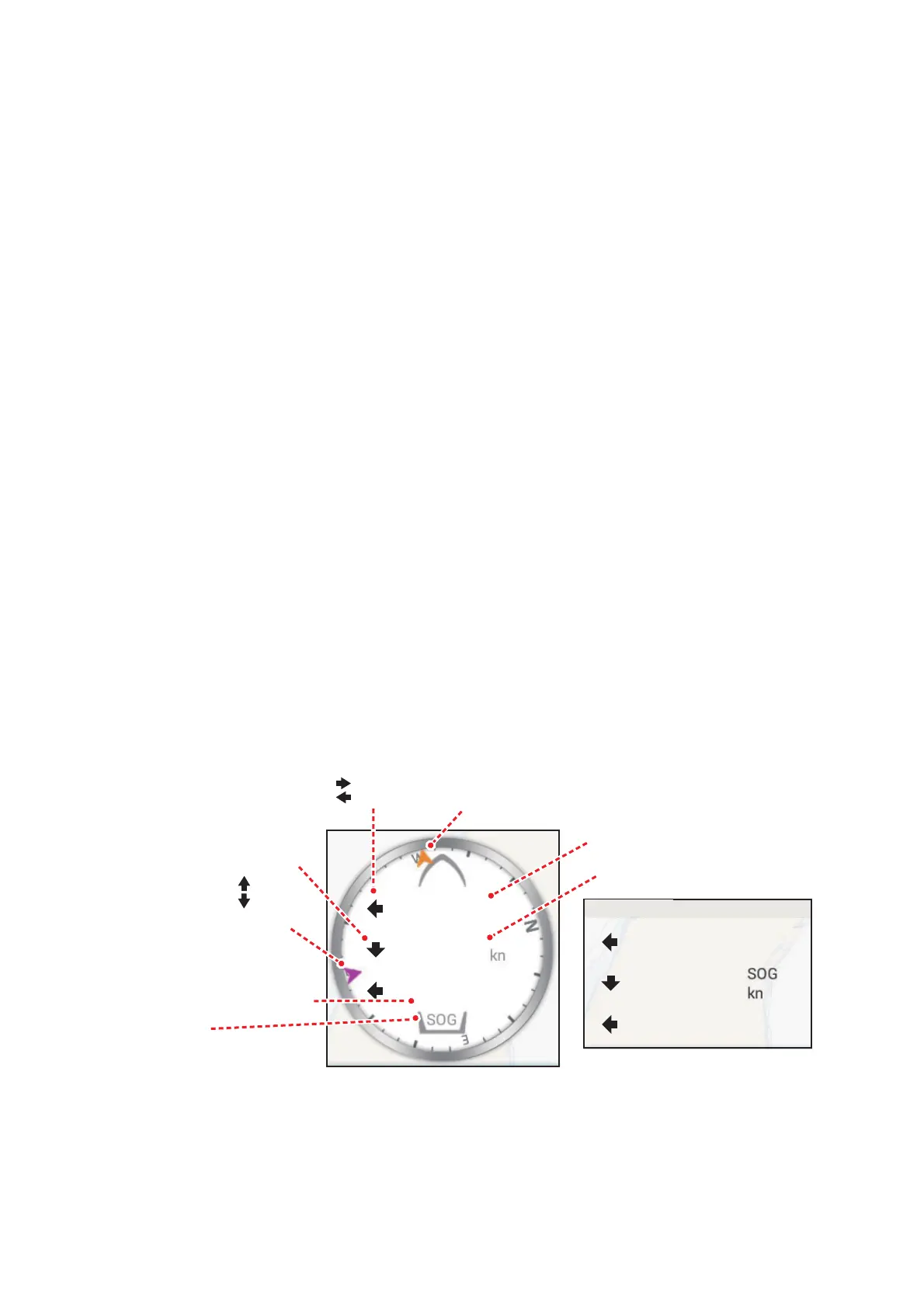

12.3.8 SC-33/SCX-20 3-axis speed display
With connection of a SC-33/SCX-20 Satellite Compass
™
in the network, a dedicated
3-axis speed display data box can be shown in the data area.
This function requires input of the PGN data sentence 130578 (Vessel Speed Com-
ponents).
Referring to section 12.3.3 and section 12.3.4, tap [3-Axis Speed].
1.23
15.67
1.23
Wind direction
(
purple arrow
)
Tidal current direction
(
brown arrow
)
Port/starboard directional speed
: Starboard
: Port
: Fore
: Aft
Fore/aft directional speed
Speed at stern
Speed at mid-ship
Speed at
CCRP*
Speed
SOG: Speed over
the ground
STW: Speed thru
the water
[Graphic]
analog format
[Numeric]
digital format
1.23
15.67
1.23
3-axis Speed
*
CCRP (Consistent Common Reference Point) is determined at installation, and is either the bow,
transducer location or center of vessel.
