6. RADAR

6-7

6.8.2 How to set the number of the range rings to show

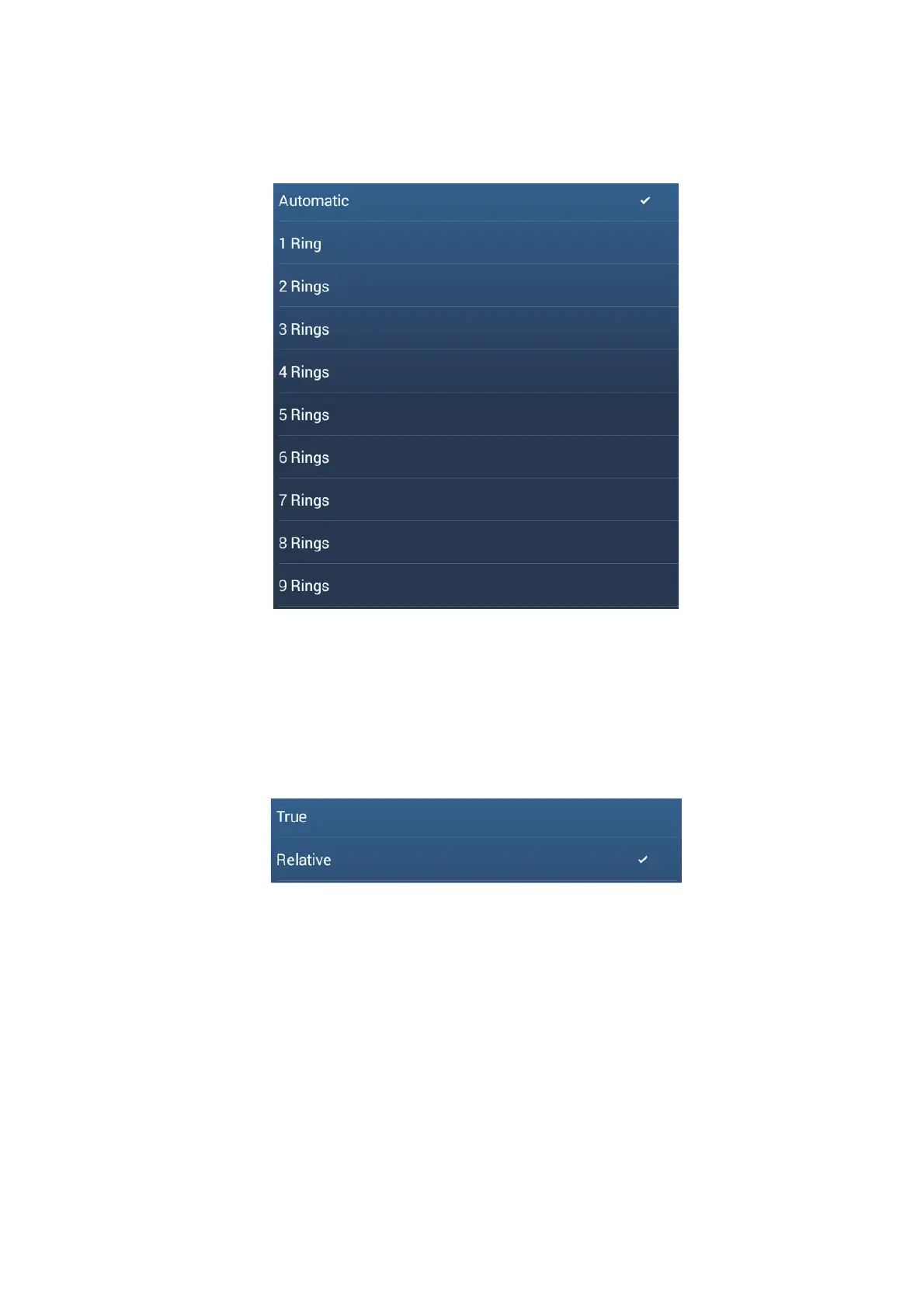

1. Open the [Radar] menu.

2. Tap [Rings Interval].

3. Tap a number. [Automatic] automatically selects the number of rings according to

the range scale.

4. Tap the close button on the title bar to finish.

6.8.3 How to select the range rings mode

To select the range rings mode, open the [Radar] menu, then set [Bearing Scale

Mode] to [True] or [Relative].
