11. FUSION-Link

11-2

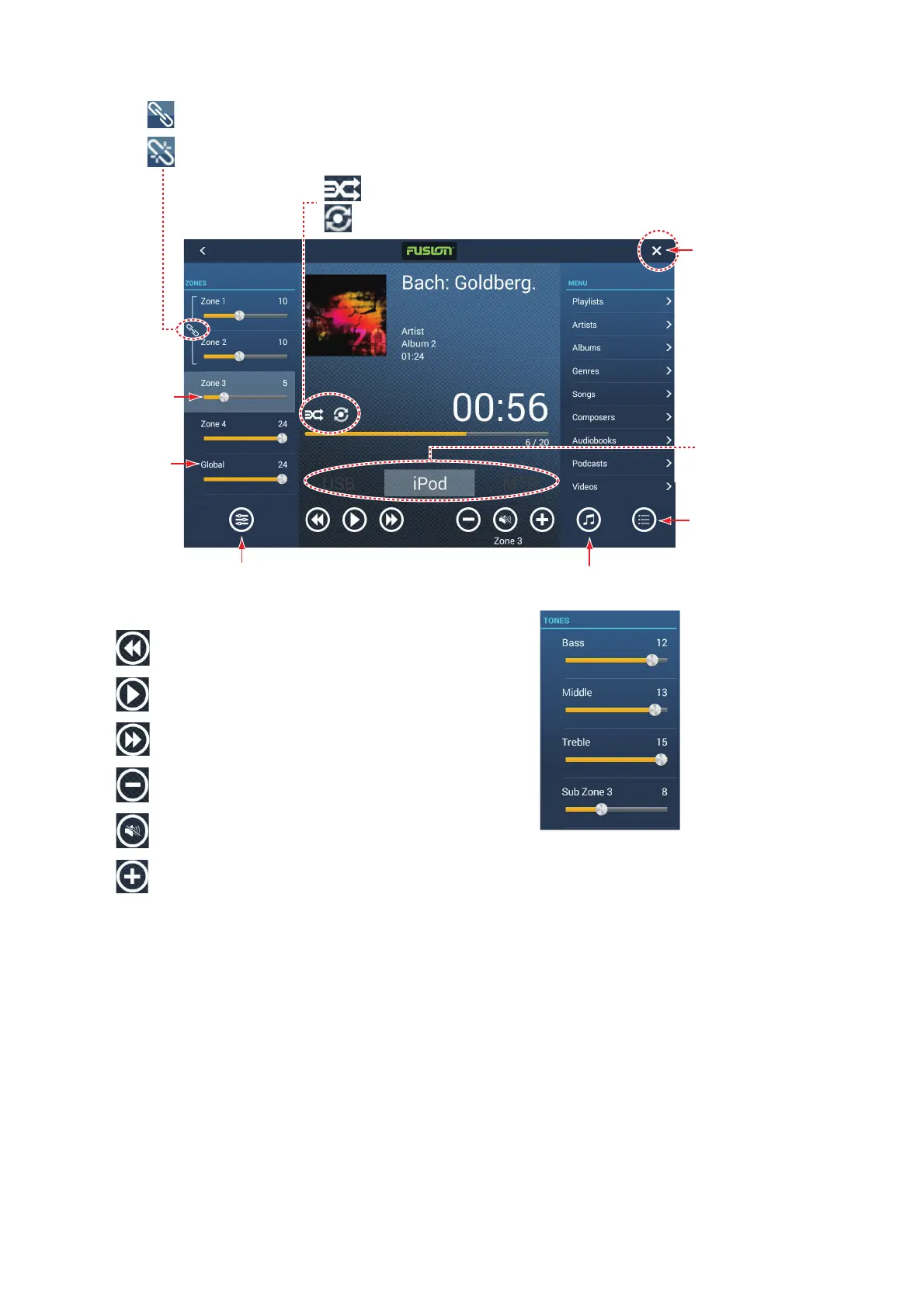

Example1: iPod, full screen

Drag

slider to

adjust

volume.

Show or hide [ZONES] panel.

Show or hide

[MENU] panel.

Tap: Goto previous title.

Hold down: Go back.

button

Tap: Goto next number.

Hold down: Fast forward.

Swipe to

change

source.

Show or hide [TONES] panel

(tone controls).

Playback

Lower volume.

Raise volume.

Mute/unmute.

: Select tracks or albums.

: Repeat one or all.

Globally

adjust

volume.

Zones 1 and 2 volumes synched.

Zones 1 and 2 volumes independent.
