Furuno NavNet TZtouch3 Series User Manual

1. SYSTEM INTRODUCTION
1-9
* The beep sound can be turned on or off with [Notify when NAVpilot is engaged] in
the menu. See section 2.10.8.
10 CURSOR key and cursor
pad
CURSOR key, short push:
• Opens pop up menus.
• Activates/confirms the item selected by the cursor.
CURSOR key, long push:
• Edit display icon (on Home screen).
CursorPad operation:
• Moves the selection cursor.
11 STBY/AUTO key Switches the steering mode of the FURUNO NAVpilot series
Autopilot between the Stand-by and AUTO modes. When
switching occurs, a beep sounds* and a message informs you
of Navpilot mode change.
• Stand-by mode→AUTO mode: "Navpilot Engaged".
• AUTO mode→Stand-by mode: "Navpilot Disengaged".
12 POINTS/ROUTE key Short push: Sets the cursor location as a point.
Long push: Starts a route from the cursor location.
13
RotoKey
™
Short push:
• Opens pop up menus.
• Activates/confirms the item selected by the cursor.
Long push:
• Edit display icon (on Home screen).
Rotate:
• Moves the selection cursor. Selected items are highlighted.
• Zooms in/out.
14 RANGE OUT/IN key • Zooms in/out.
15 SHIP/3D key and scrolling
pad
Ship/3D button short push:
• Returns own ship to center of screen (Plotter/Weather/Ra-
dar display).
• Cancels the echo history (Fish finder display).
Ship/3D button long push:
• Switches between 2D and 3D display.
Scrolling pad:
• Scrolls chart, radar picture, and AXIS make PTZ network
cameras.

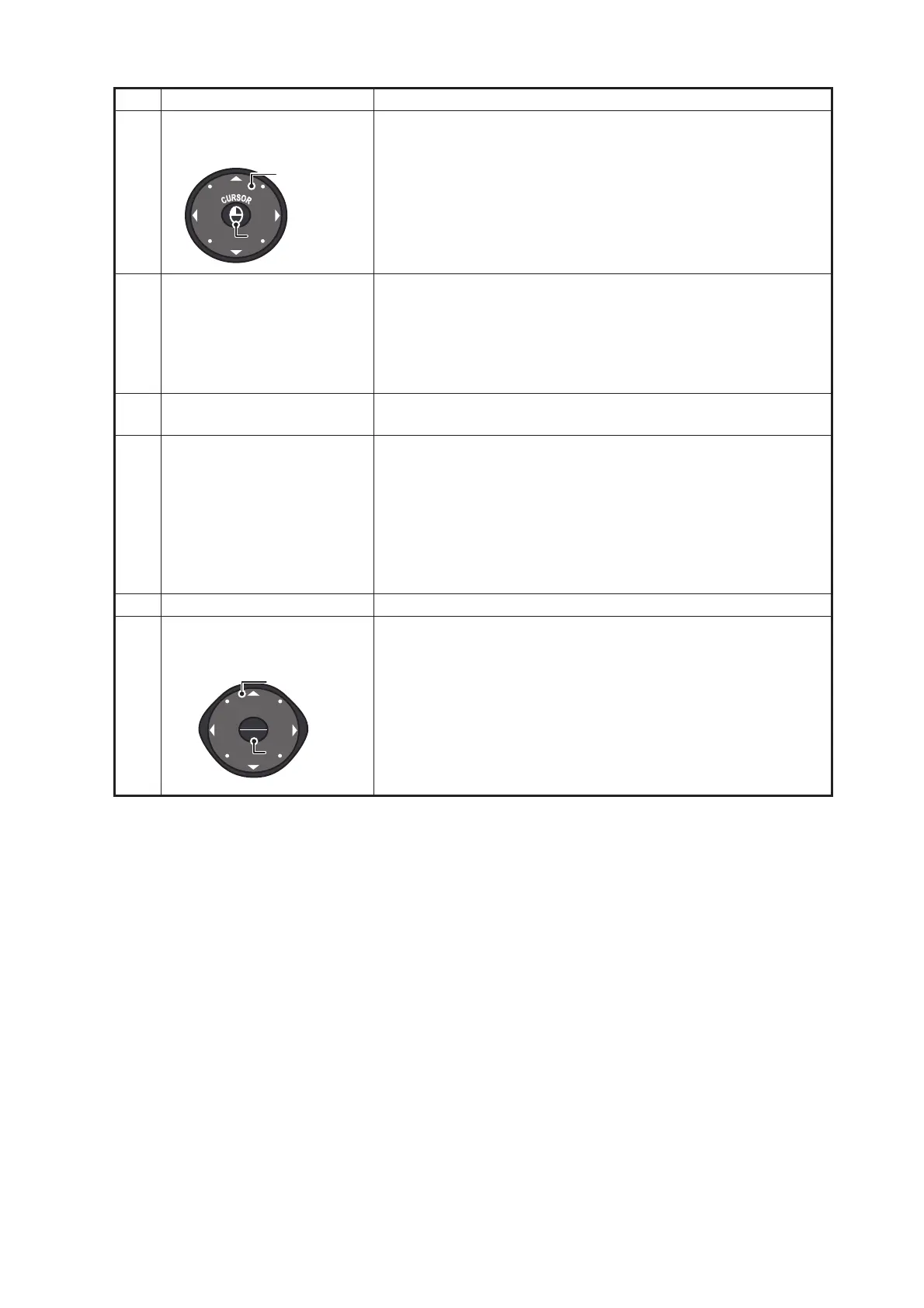

No. Key Name Description
Cursorpad
CURSOR
key
CURSOR
key
S
C
R
O
L
L
I
N
G
SHIP
3D
Scrolling
pad
Scrolling
pad
SHIP/3D
button
SHIP/3D
button
