7-6-5-1 GSUI Acquisition Diagnostics - Test All (cont’d)
7-6-5-2 Instructions Frame
Displays a test-specific page or the default instructions page.
7-6-5-3 Status Frame
Initially displays the last known status for the particular diagnostic. Once the diagnostic starts, the frame
displays the “current” status of all test results.

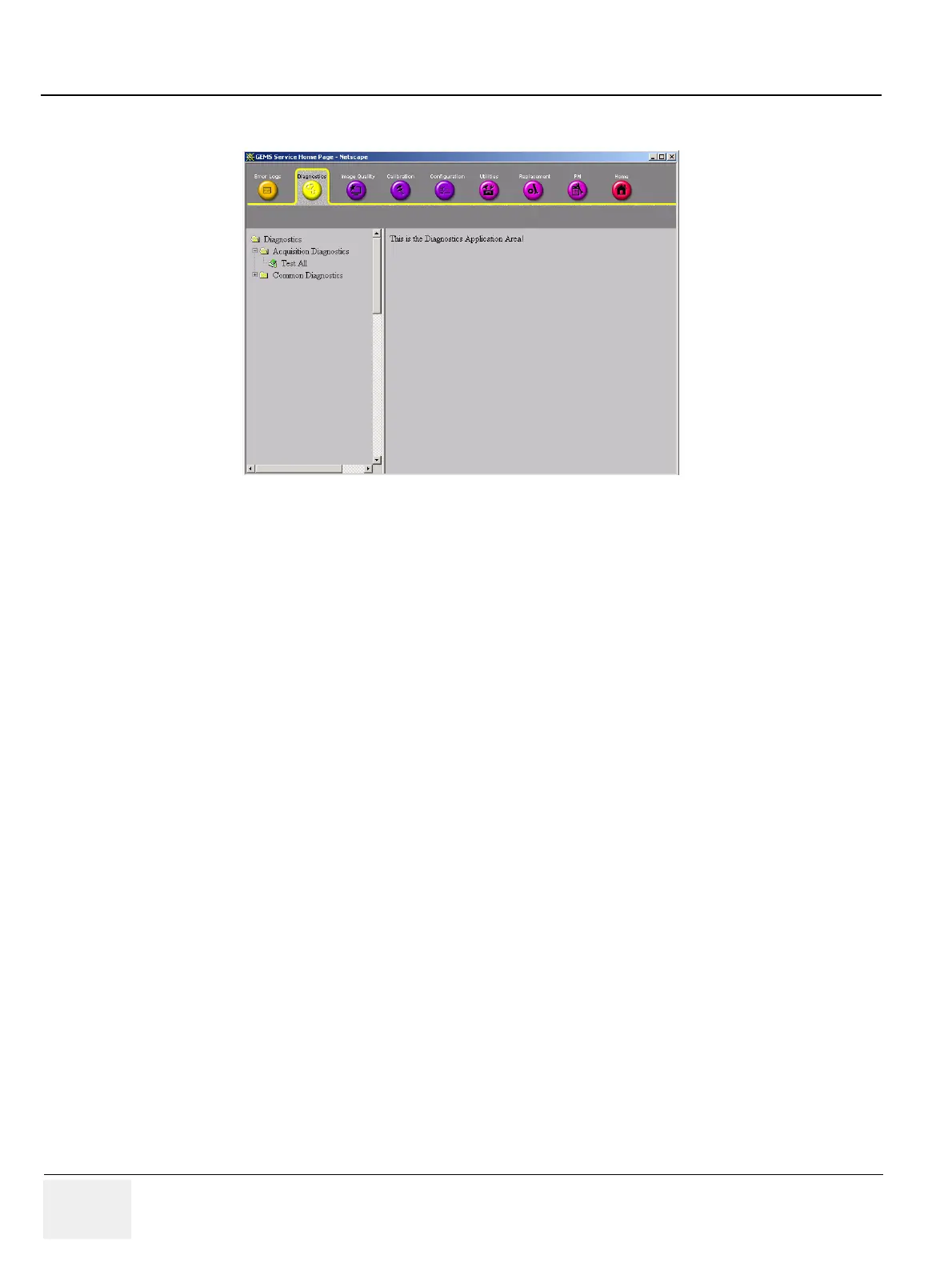

Figure 7-32 User Interface Diagnostic Screen, Test All
To Next Page
