1-70 Service Manual

7510

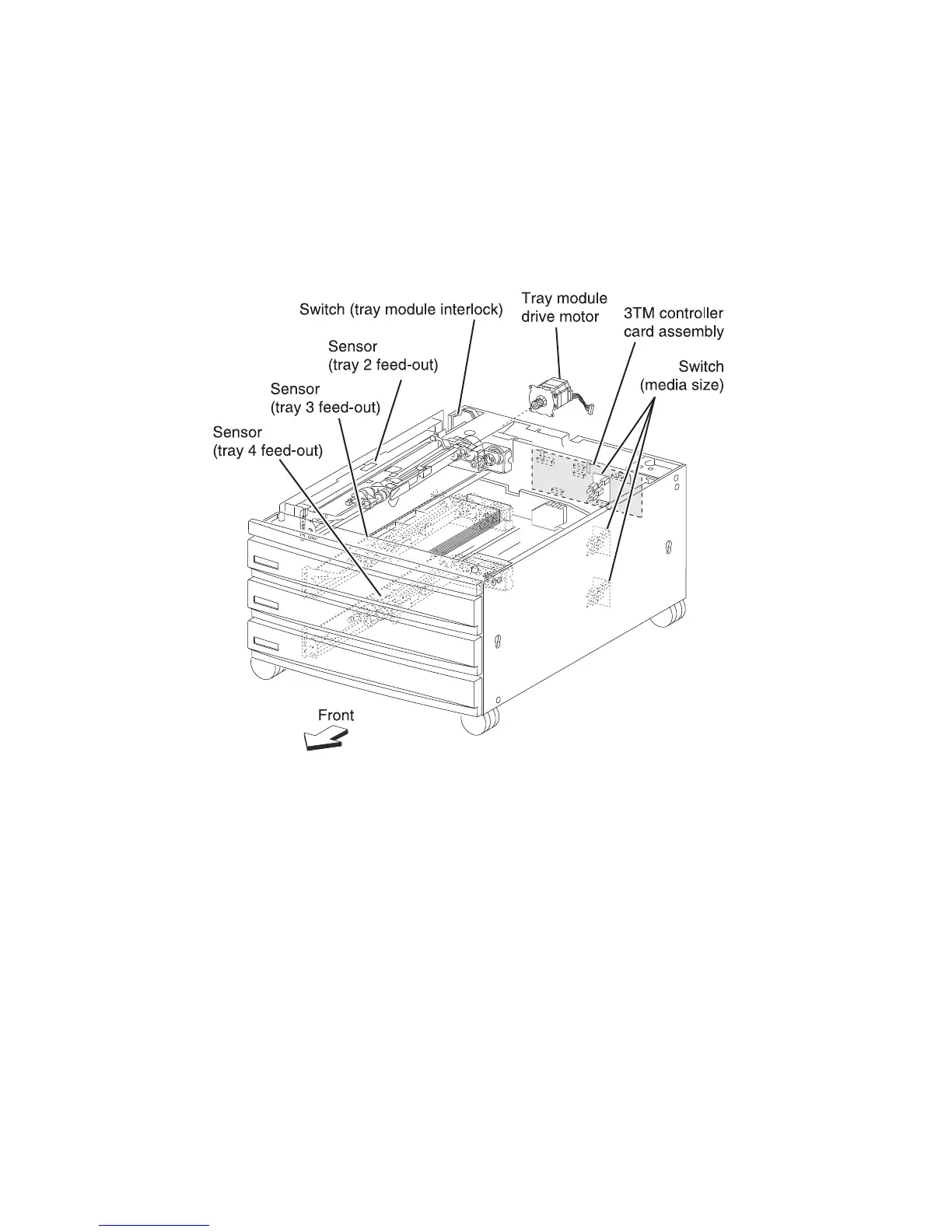

The tray module transport roll assembly feeds media from the tray 3 or tray 4 to the printer.

Tray module drive motor

This motor is used to drive the media transport mechanism in the tray module.

3TM controller card assembly

The 3TM controller card assembly, which contains a CPU, controls media feed in the tandem tray module upon

receiving a command from the upper printer engine card assembly and sensor/switch information.
