4-200 Service Manual
7510
2000-sheet dual input (TTM)—left door assembly removal
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on
page 4-167.
2. Open the TTM left door assembly.

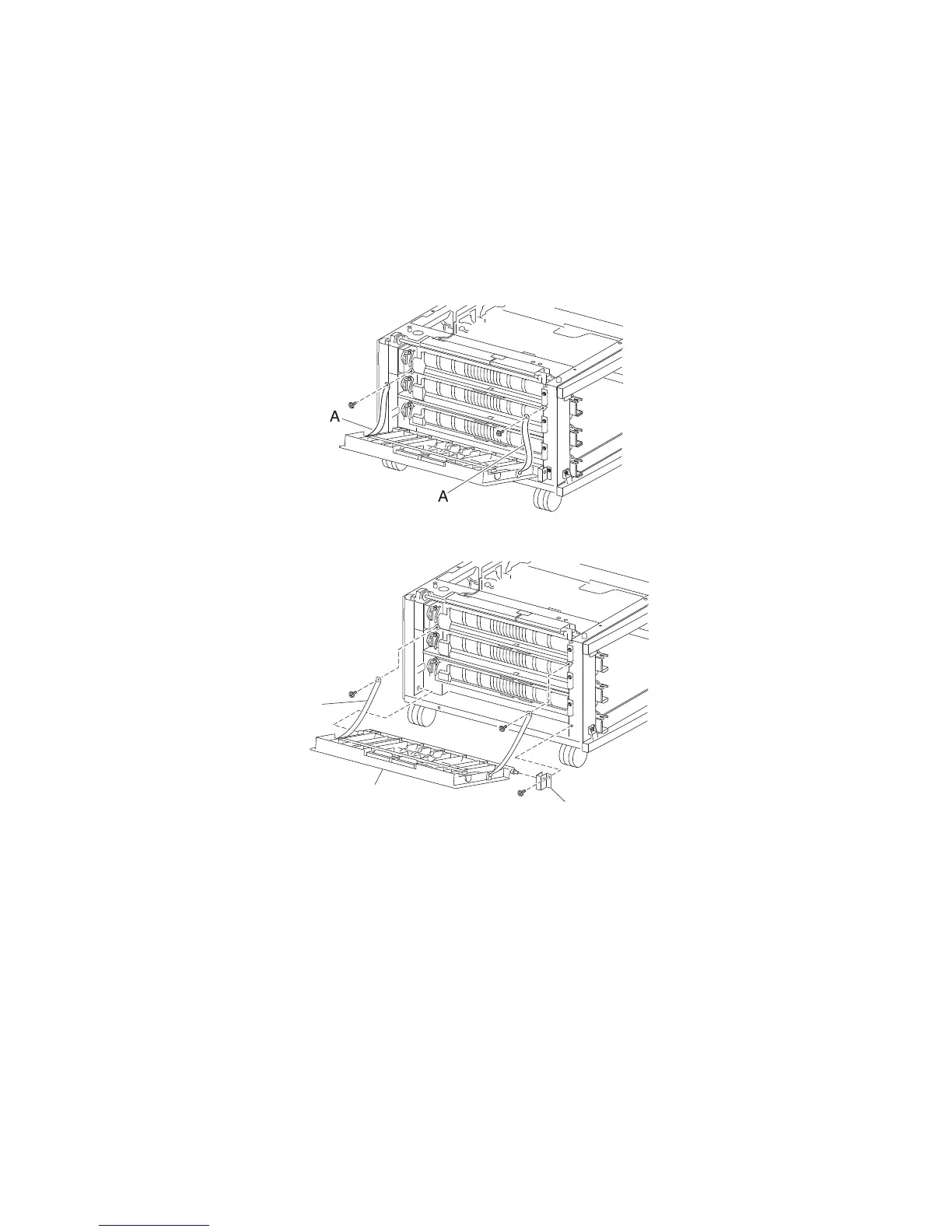

3. Remove the two screws securing the two support straps (A) to the machine.
4. Remove one screw securing the bracket (B).
5. Remove the bracket (B).
6. Move the TTM left door assembly (C) to the front and out in the direction of the arrow.
7. Remove the TTM left door assembly (C).
C
B
A
