General information 1-63
7510
Tray module drive motor
This motor is used to drive the media transport mechanism in the tray module.
TTM tray 4 media transport motor
This motor is used in the TTM to transport media from the tray 4 towards the tray module left door assembly.
TTM controller card assembly
The TTM controller card assembly, which contains a CPU, controls media feed in the tandem tray module upon
receiving a command from the upper printer engine card assembly and sensor/switch information.
Switch TTM
(media size)
Switch (tray module interlock)

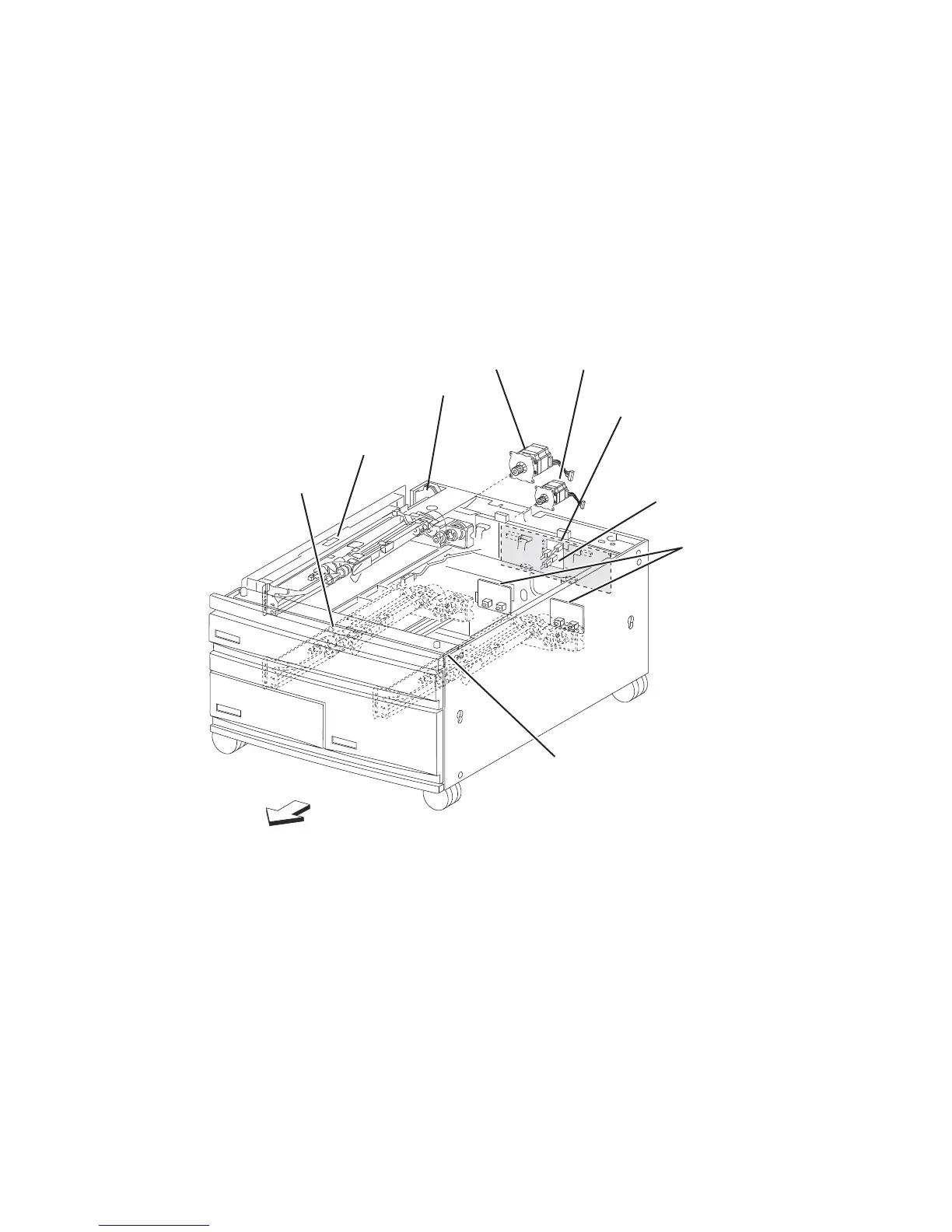

TTM controller
card assembly
Tray module
drive motor
TTM tray 4 media
transport drive motor
Front
Sensor
(tray 2 feed-out)
Sensor
(tray 3 feed-out)
Sensor (tray 4 feed-out)
Switch
(media size)
