Lexmark 940e - X Color Laser Service Manual

Repair information 4-79
7510

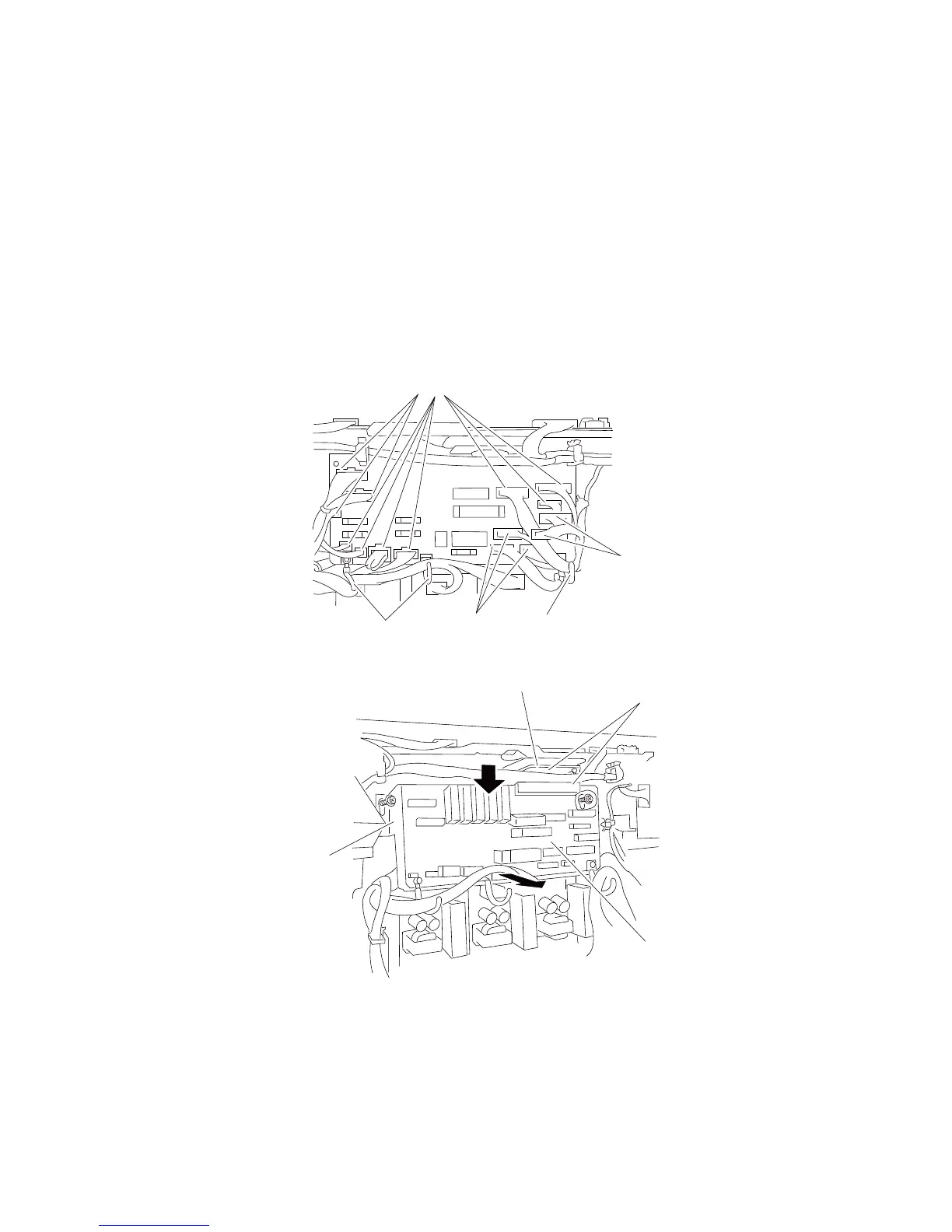

Lower printer engine card bracket assembly removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly
removal” on page 4-102.
3. Remove the developer / transfer roll HVPS card assembly. See “Developer / transfer roll HVPS card
assembly removal” on page 4-103.
4. Remove the fifteen connectors from the lower printer engine card bracket assembly (A).
5. Remove the harnesses from the clamps.
6. Remove the two screws securing the lower printer engine card bracket assembly (A) to the machine.
Note: When removing the lower printer engine card bracket assembly (A), the lower printer engine card
assembly (B) and the upper printer engine card assembly (C) will become detached.
7. Move the lower printer engine card bracket assembly (A) down.
8. Remove the lower printer engine card bracket assembly (A).
Connectors
Clamps
Connectors
Connectors
Clamp
A
C
Connector
B
