Lexmark 940e - X Color Laser Service Manual

Repair information 4-231
7510

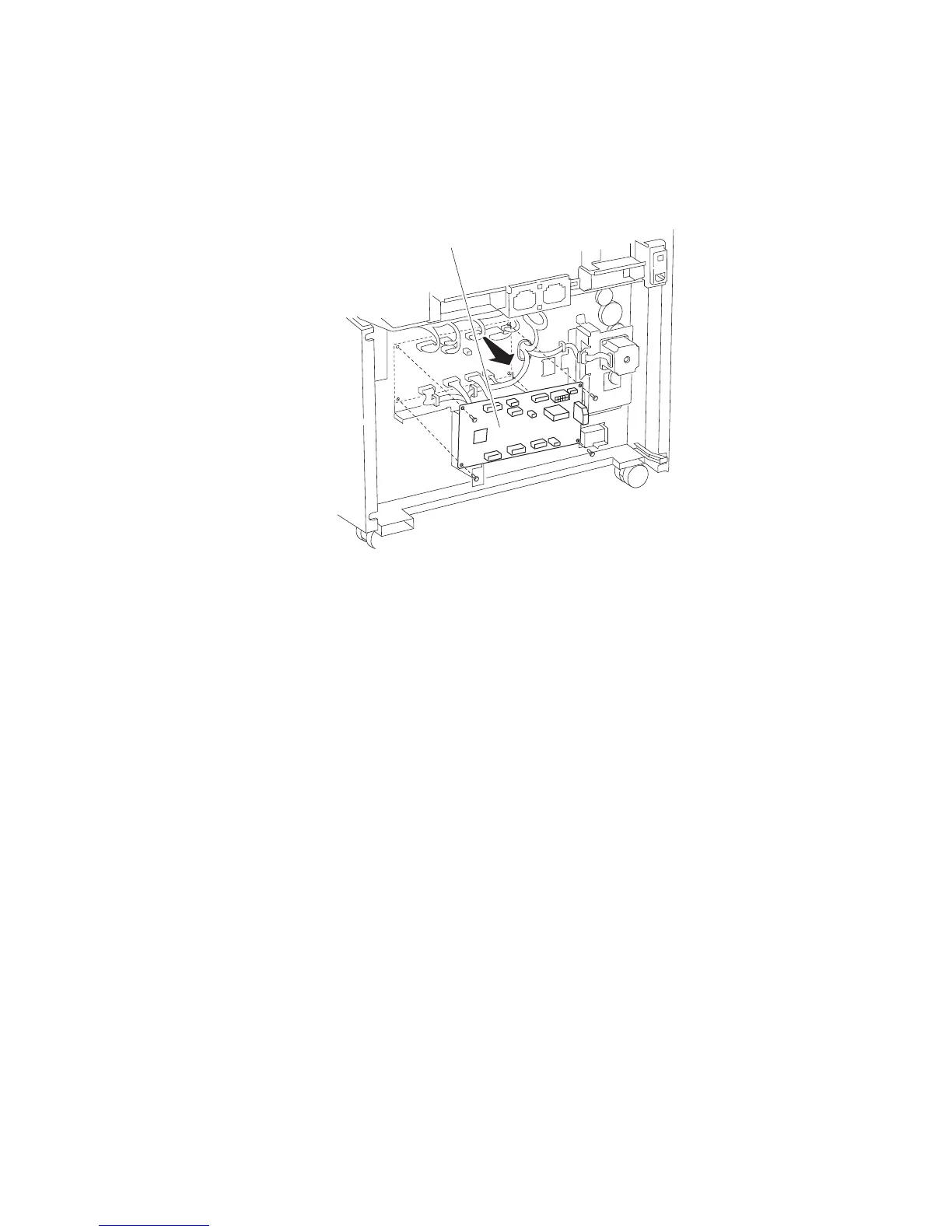

3X 500-sheet drawer (3TM)—3TM controller card assembly removal
1. Remove the rear cover. See “3X 500-sheet drawer (3TM)–rear cover removal” on page 4-208.
2. Disconnect the nine connectors from the 3TM controller card assembly (A).
3. Remove the four screws securing the 3TM controller card assembly (A) to the machine.
4. Remove the 3TM controller card assembly (A).
A

Lexmark 940e - X Color Laser Specifications

General

Print Technology	Laser
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Fax Modem Speed	33.6 Kbps
Functionality	Copier, Fax, Printer, Scanner
Connectivity Technology	USB, Ethernet
Operating System Support	MS Windows XP
Scan Type	Flatbed
Connectivity	USB, Ethernet
