4-140 Service Manual
7510

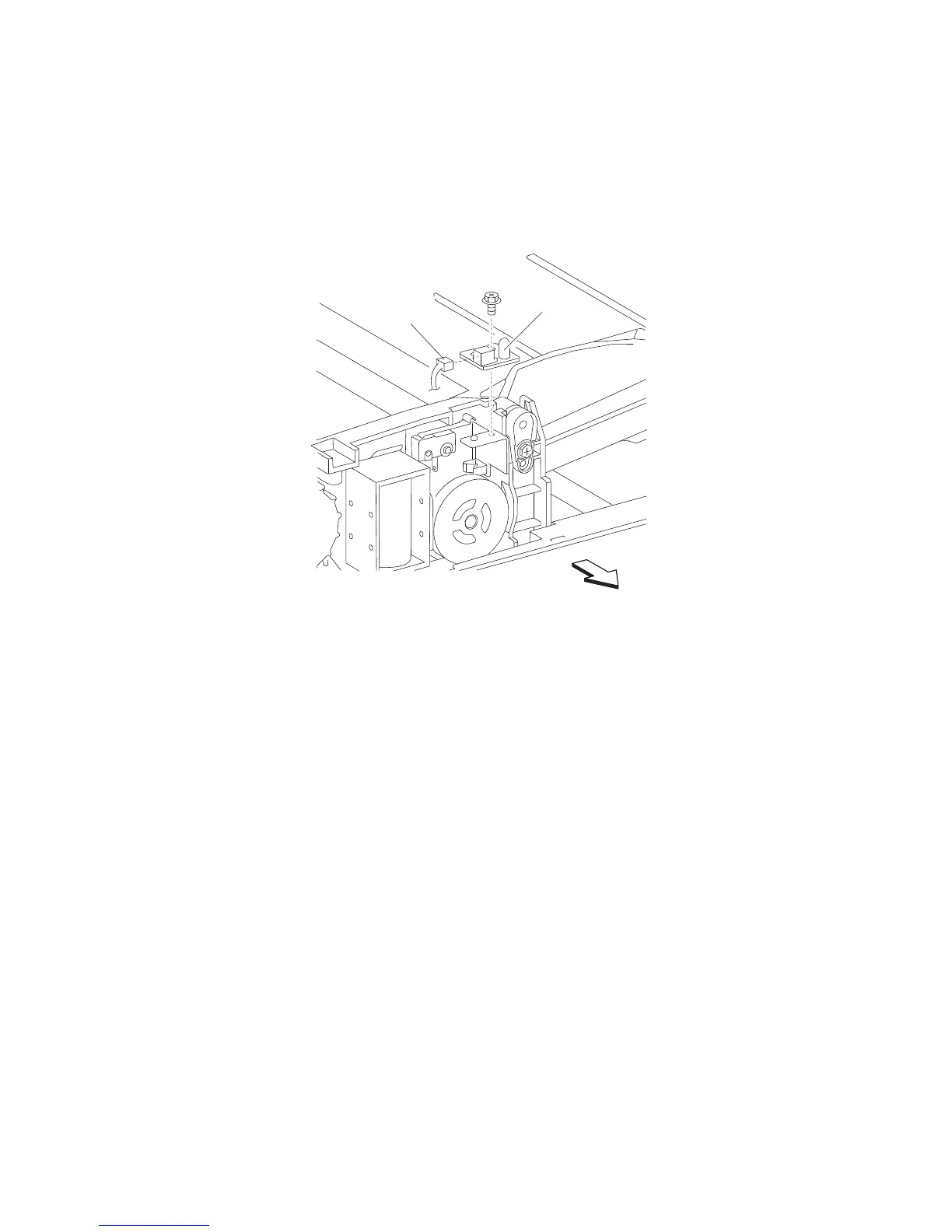

Document set LED removal
1. Open the ADF left cover assembly.
2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-131.
3. Disconnect the connector from the document set LED (A).
4. Remove the screw securing the document set LED (A).
5. Remove the document set LED (A).
Sheet through actuator removal
1. Open the ADF left cover assembly.
2. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-144.
3. Remove the ADF feed/pick roll assembly. See “ADF feed/pick roll assembly removal” on page 4-142.
4. Remove the screw from the green ground wire (A).
5. Remove the screw securing the grounding plate (B).
6. Remove the grounding plate (B).
7. Remove the two screws securing the harness guide (C).
8. Remove the harness guide (C).
9. Remove the screw securing the pick roll position motor assembly (D).
10. Remove the pick roll position motor assembly (D).
11. Remove the screw securing the rear bracket (E).
Warning: Shims may be present under the rear bracket (E) and may possibly fall out. Note the locations of any
shims.
12. Remove the rear bracket (E).
13. Gently pry the sheet through actuator (F) out of the ADF left cover assembly.
14. Remove the sheet through actuator (F).
