4-10 Service Manual

7510

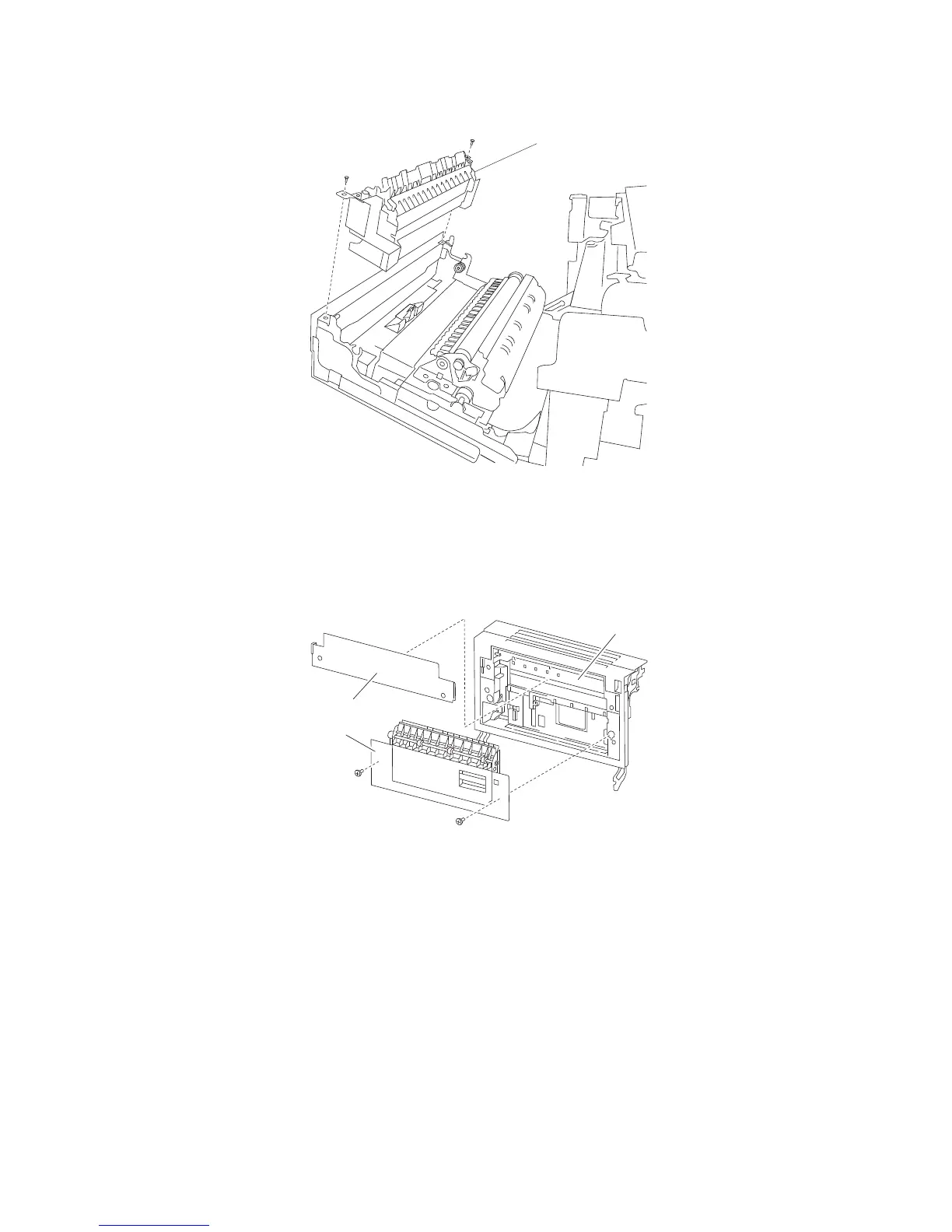

Duplex unit assembly removal

1. Remove the two screws securing the duplex unit assembly (A) to the printer left door assembly (B).

2. Gently pull the duplex unit assembly (A) from the printer left door assembly (B).

Note: When removing the duplex unit assembly (A), the plastic panel (C) may become detached.

3. Remove the duplex unit assembly (A).
