The MPF is a mechanical unit suppling media to the printer. The driving force from the MPF/transport drive
motor is transmitted to the MPF feed roll to feed media.
MPF feed roll
The MPF feed rolls feed media set on the MPF and into the printer.
MPF pick solenoid
The MPF pick solenoid transmits the driving force from the MPF/transport drive to the MPF feed rolls.
Sensor (MPF media out)
The sensor (MPF media out) detects whether media is present on the MPF.
Sensor (MPF media width)
The MPF side guides detects the width (length in the main scanning direction) of media on the MPF.
Media size
The following table details the standard paper and envelope sizes supported by the Lexmark X945e MFPs and
options.
Media Width Length
A4 210 mm 297 mm
A5 148 mm 210 mm
A3 297 mm 420 mm
JIS B5 182 mm 257 mm
JIS B4 257 mm 364 mm
Letter 8.5 inches 11 inches
Tabloid 11 inches 17 inches
Legal 8.5 inches 14 inches
Executive 7.25 inches 10.5 inches
Folio 8.5 inches 13 inches

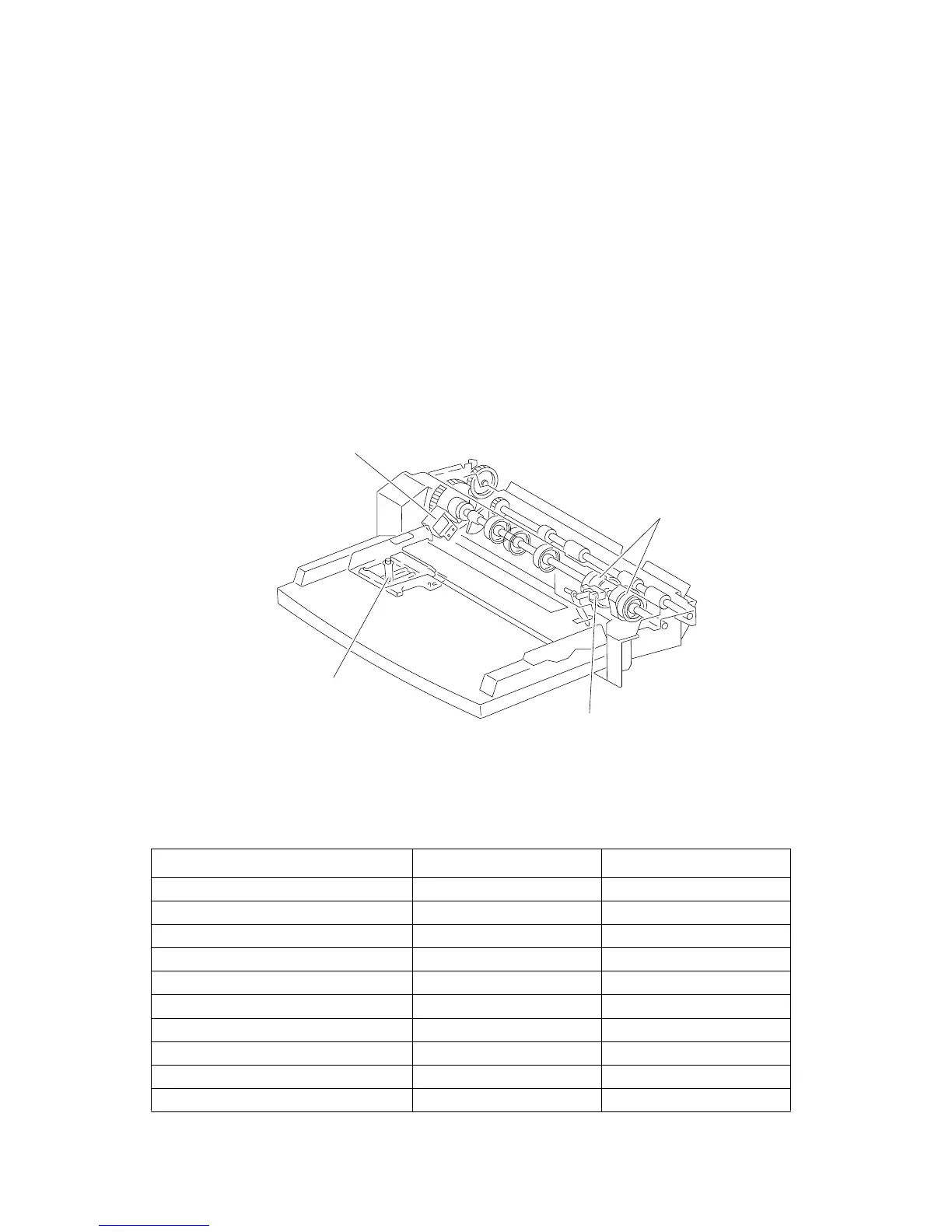

MPF pick solenoid
MPF pick rolls
Sensor (MPF media out)
Sensor (MPF media width)
