4-42 Service Manual
7510
Switch (waste toner cartridge interlock) removal
1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3.
2. Remove the front left cover. See “Front left cover removal” on page 4-9.
3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-39.
4. Remove the waste toner cartridge sensor assembly. See “Waste toner cartridge sensor assembly removal”
on page 4-39.

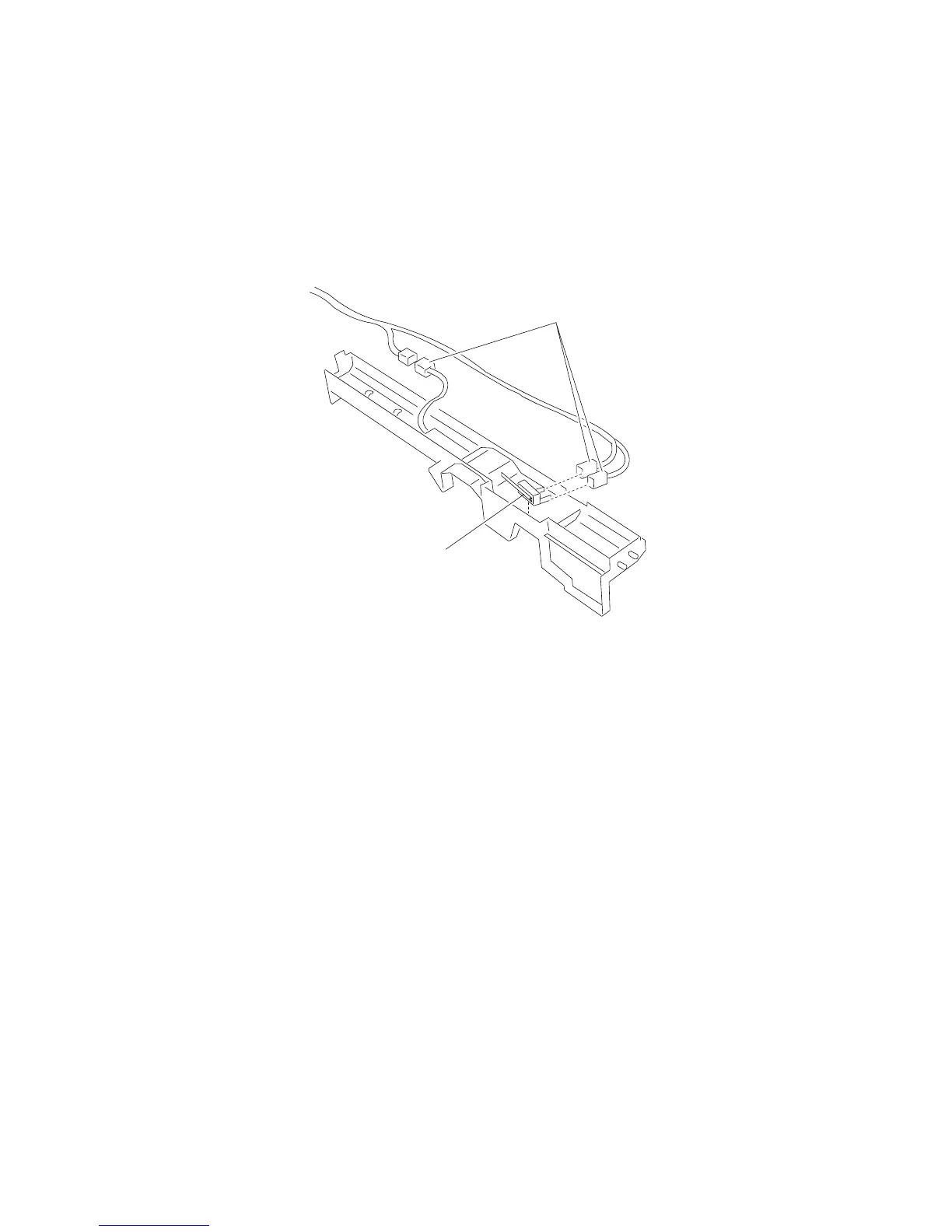

5. Release the hooks securing the switch (waste toner cartridge interlock) (A) to the assembly.
6. Remove the switch (waste toner cartridge interlock) (A).
