2000-sheet dual input (TTM)—sensor (media out) removal
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on
page 4-167.
2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly
removal” on page 4-171.
3. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)–TTM media tray 4 assembly
removal” on page 4-170.
4. Remove the tray 4 media transport assembly. See “2000-sheet dual input (TTM)–TTM tray 4 media transport
assembly removal” on page 4-175.
5. Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly 2
removal” on page 4-183, “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on
page 4-183, or “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-179.
6. Remove the media out actuator. See “2000-sheet dual input (TTM)–media out actuator removal” on
page 4-190.

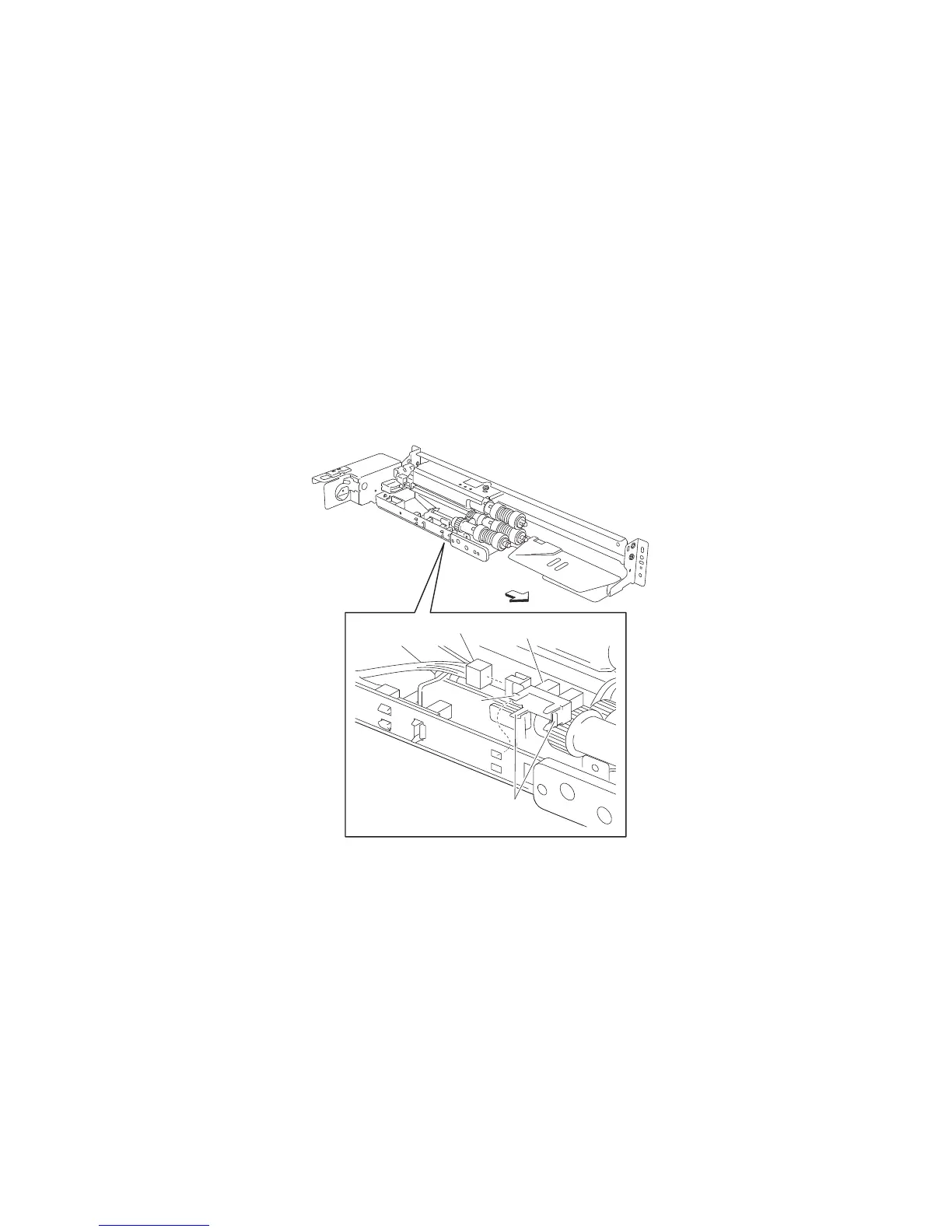

7. Disconnect the connector from the sensor (media out) (A).
8. Release the hooks securing the sensor (media out) (A) to the media feed unit assembly.
9. Remove the sensor (media out) (A).
Front
Harness
A
Hooks
Lower view
Hook
