Repair information 4-251
7510

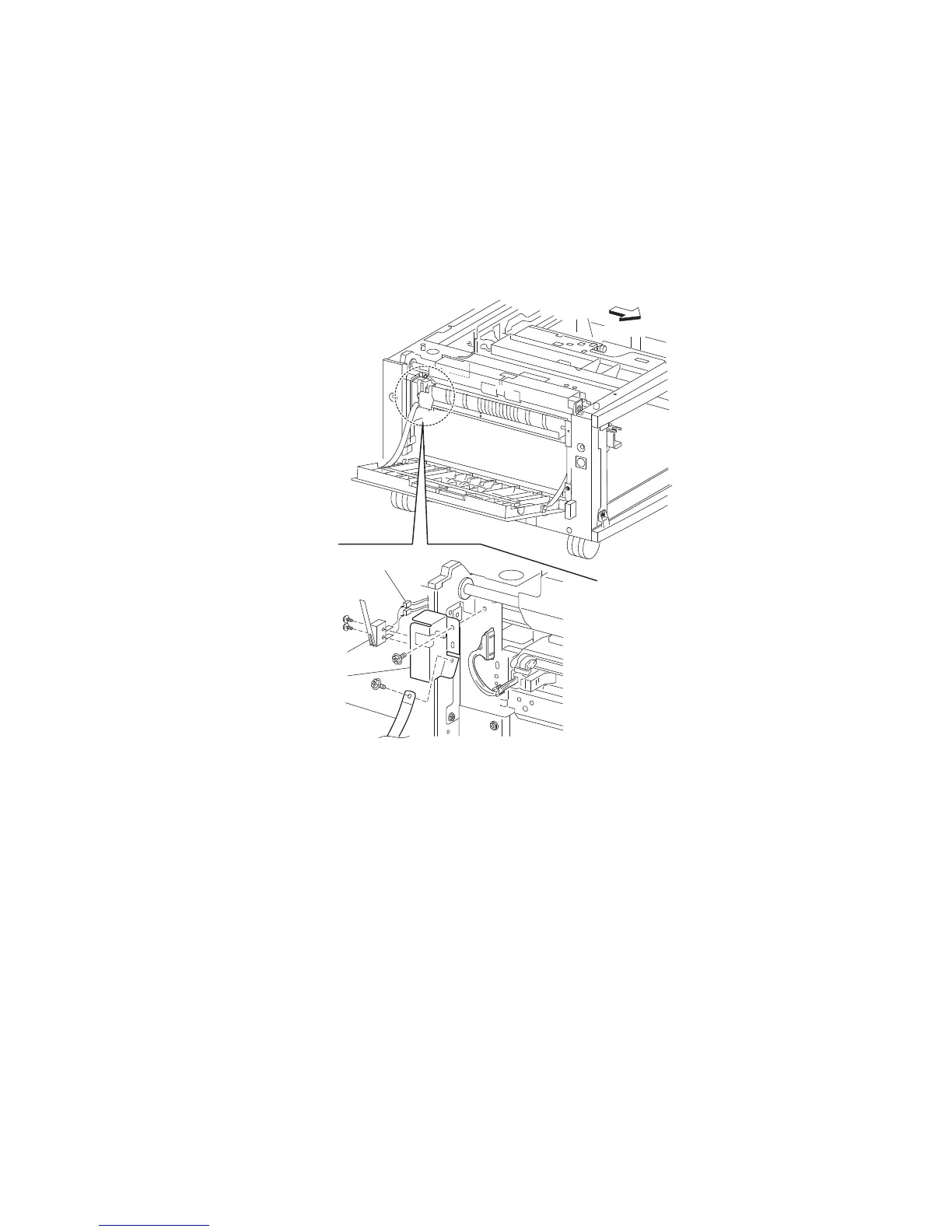

1X 500-sheet drawer (1TM)—switch (tray module left door interlock) removal
1. Open the 1TM left door assembly.
2. Remove the screw securing the support strap (A) to the machine.
3. Remove the screw securing the bracket (B) to the machine.
4. Remove the bracket (B).
5. Disconnect the two connectors from the switch (tray module left door interlock) (C).
6. Remove the two screws securing the switch (tray module left door interlock) (C) to the bracket (B).
7. Remove the switch (tray module left door interlock) (C).
