Repair information 4-195

7510

2000-sheet dual input (TTM)—one-way 22 tooth removal

1. Remove the media tray assembly.

2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-193.

3. Remove the feed roll one-way clutch. See “2000-sheet dual input (TTM)–feed roll one-way clutch removal”

on page 4-194.

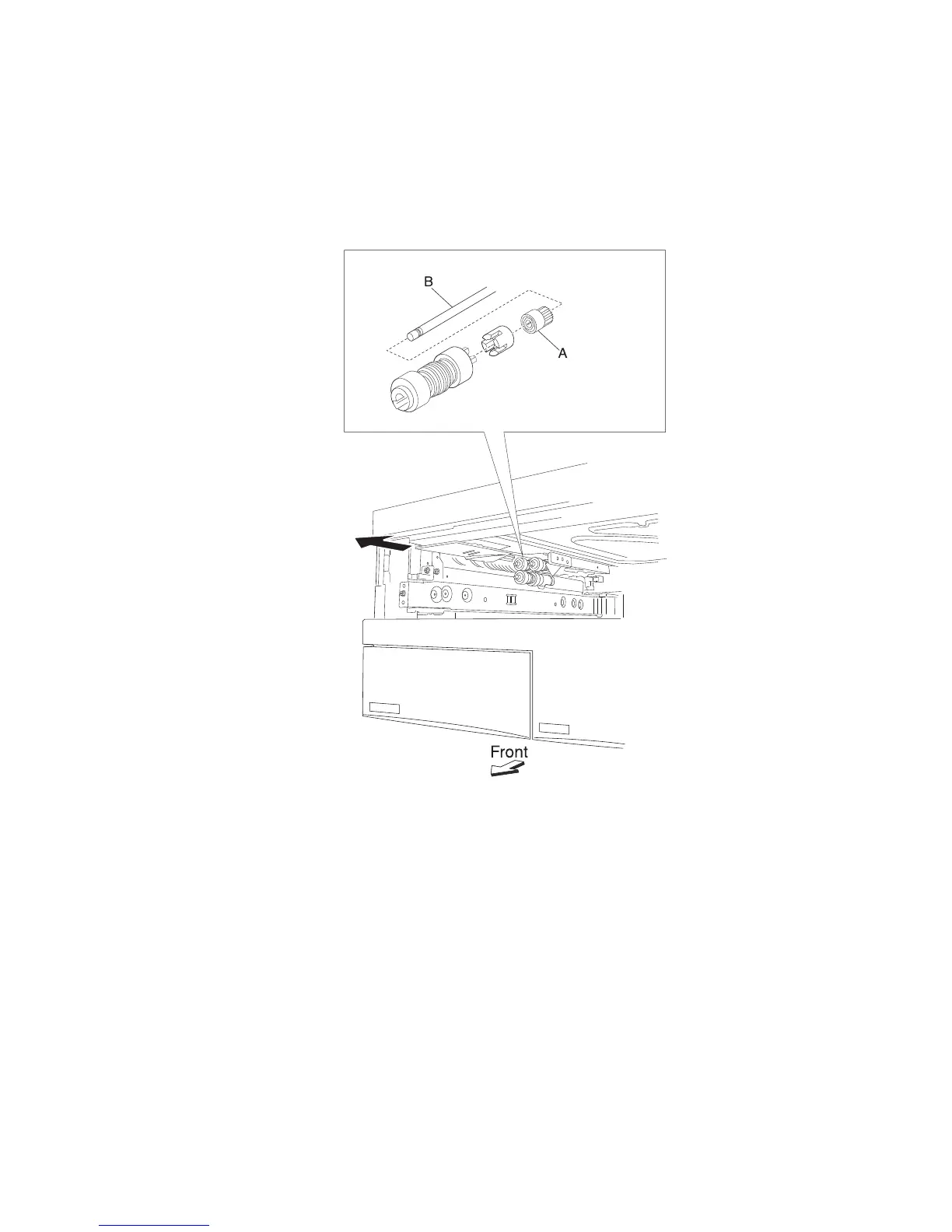

4. Remove the feed roll one-way gear 22 tooth (A).
