Parts catalog 7-15

7510

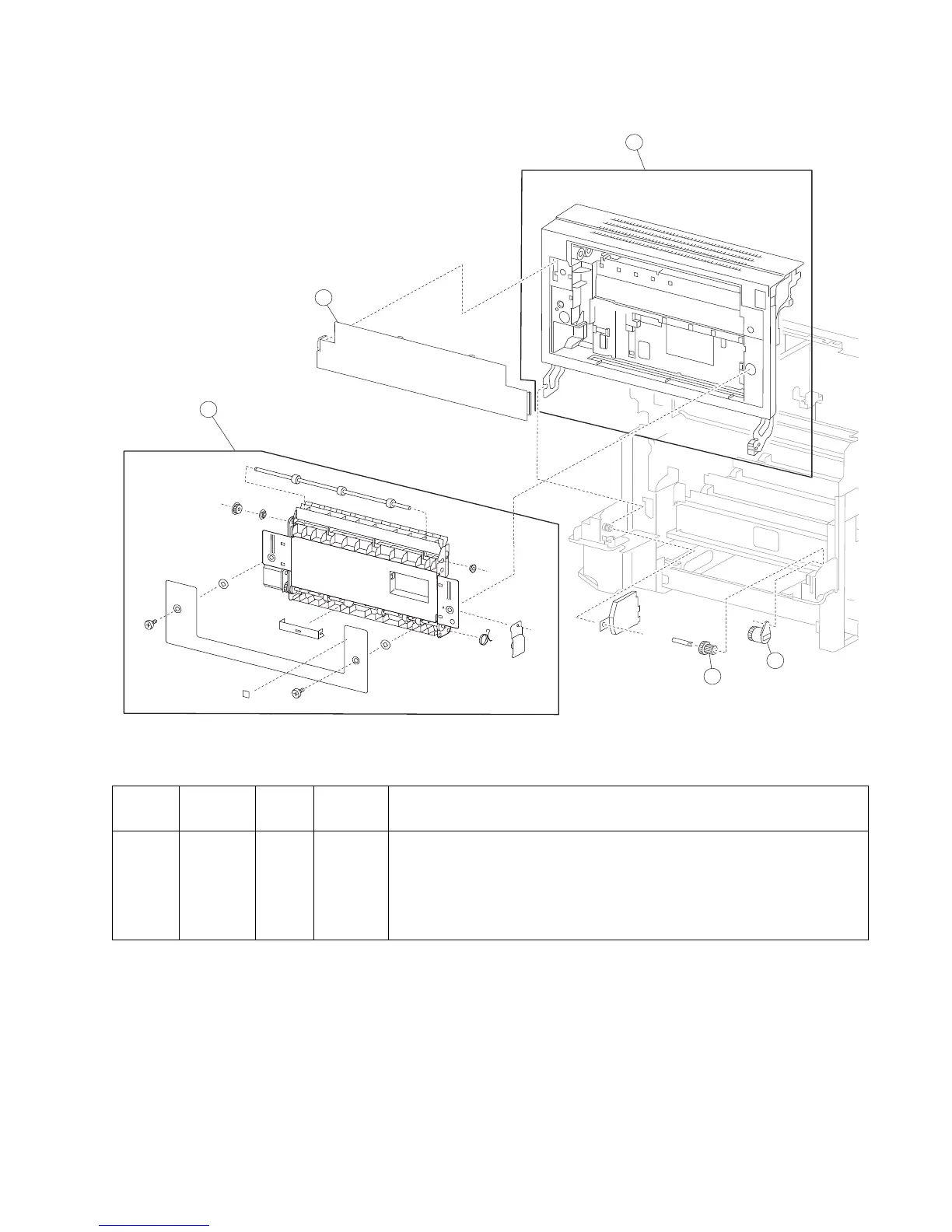

Assembly 13: Printer left door and duplex

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X4078 1 1 Printer left door assembly (this comes assembled)

2 40X3697 1 1 Printer left door damper assembly

3 40X3696 1 1 Printer left door damper idler gear

4 40X3799 1 1 Duplex unit assembly (this comes assembled)

5 40X3798 1 1 Printer left door blind cover
