4-202 Service Manual
7510

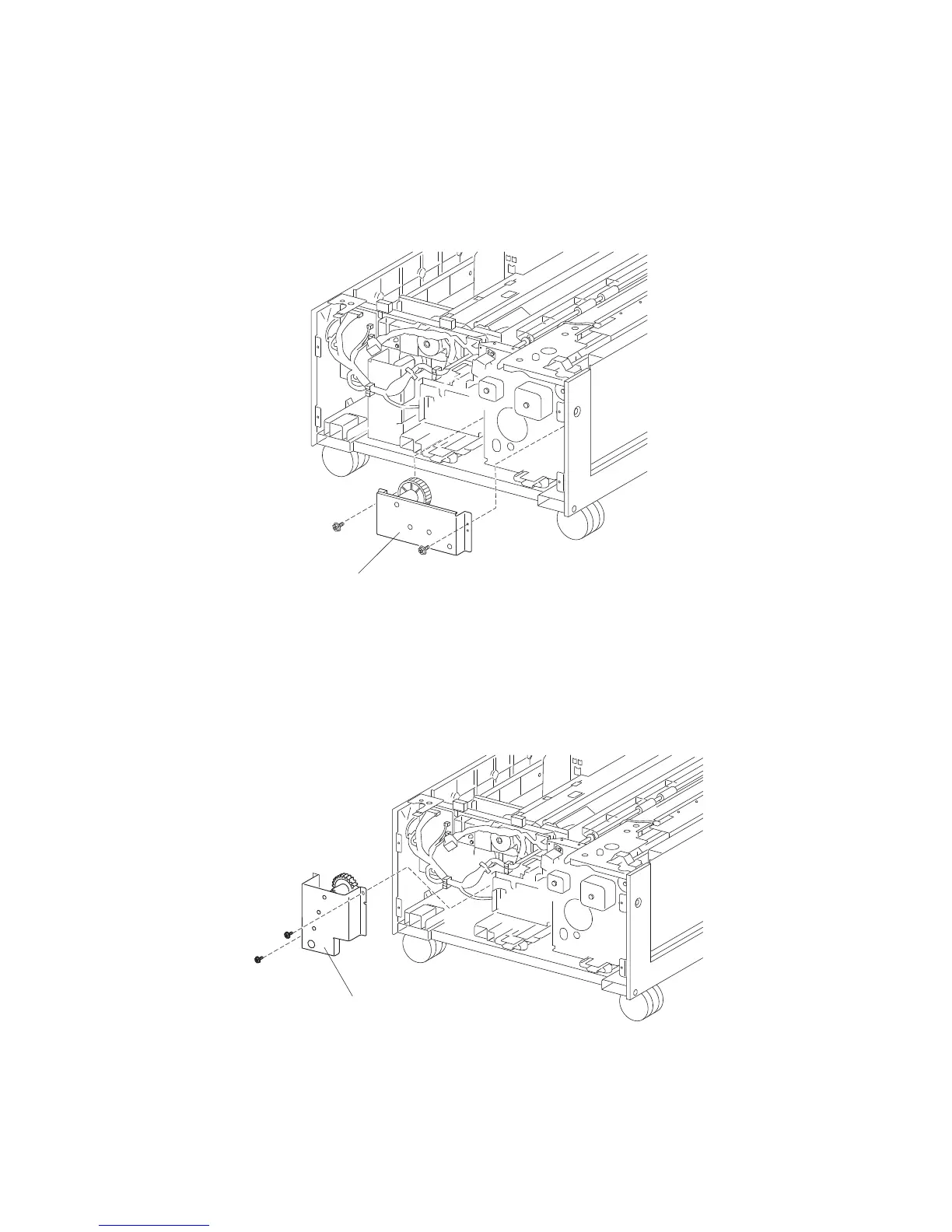

2000-sheet dual input (TTM)—tray 3 lift gear assembly removal
1. Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-167.
2. Pull the tray 3 media assembly out of the machine.
3. Remove the two screws securing the tray 3 lift gear assembly (A) to the machine.
Note: When removing the tray 3 lift gear assembly (A), the tray lift coupling assembly (B) my become detached.
4. Remove the tray 3 lift gear assembly (A).
2000-sheet dual input (TTM)—tray 4 lift gear assembly removal
1. Remove the rear cover. See “2000-sheet dual input (TTM)–rear cover removal” on page 4-167.
2. Pull the TTM media tray 4 out of the machine.
3. Remove the two screws securing the tray 4 lift gear assembly (A) from the machine.
Note: When removing the tray 4 lift gear assembly (A), the tray lift coupling assembly (B) may become detached.
4. Remove the tray 4 lift gear assembly (A).
