Parts catalog 7-3

7510

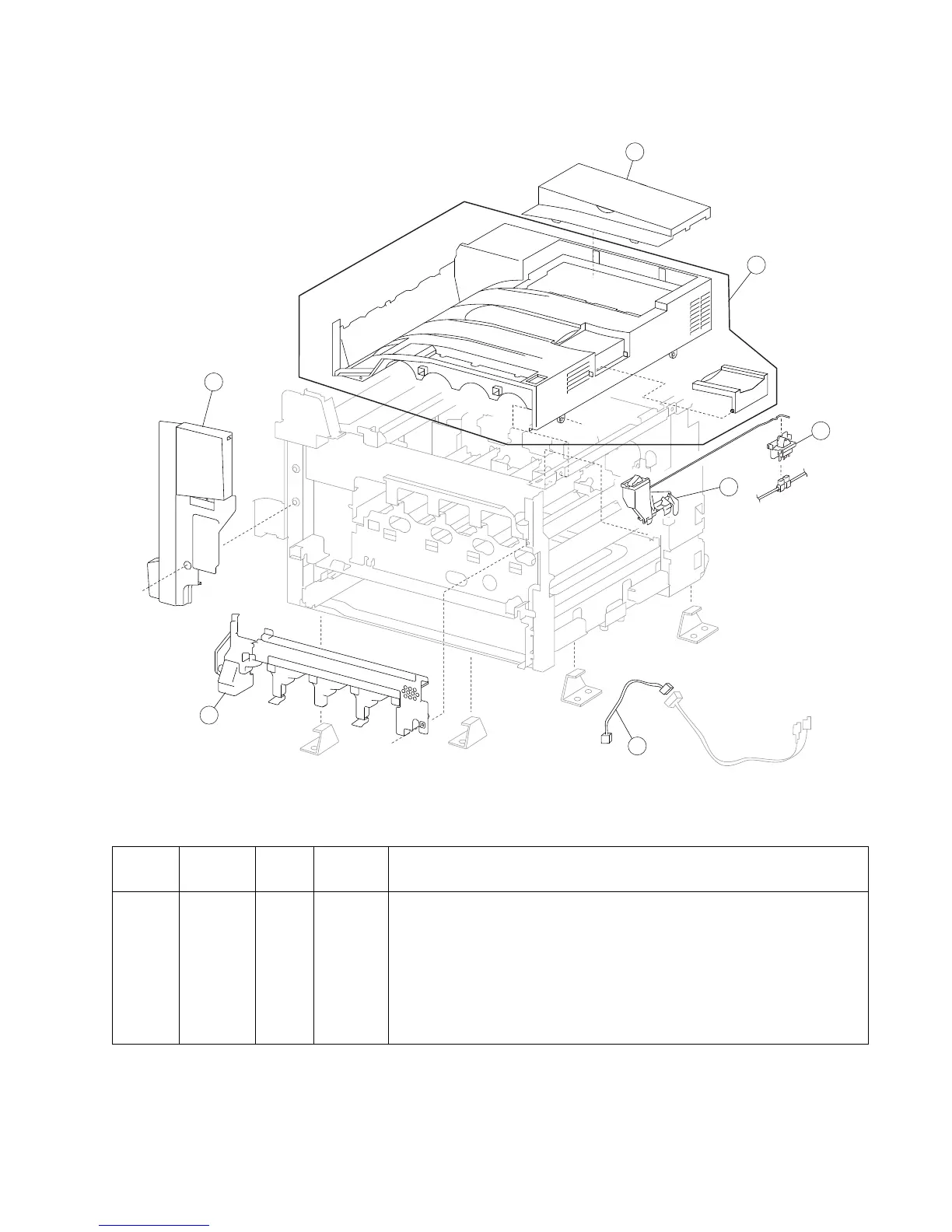

Assembly 2: Covers 2

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3782 1 1 RIP card access cover

2 40X3781 1 1 Top cover assembly

3 40X3787 1 1 Switch (main power)

4 40X3786 1 1 Main power switch actuator

5 40X3783 1 1 Main switch cable assembly

6 40X3785 1 1 Inner cover

7 40X3784 1 1 Front left cover
