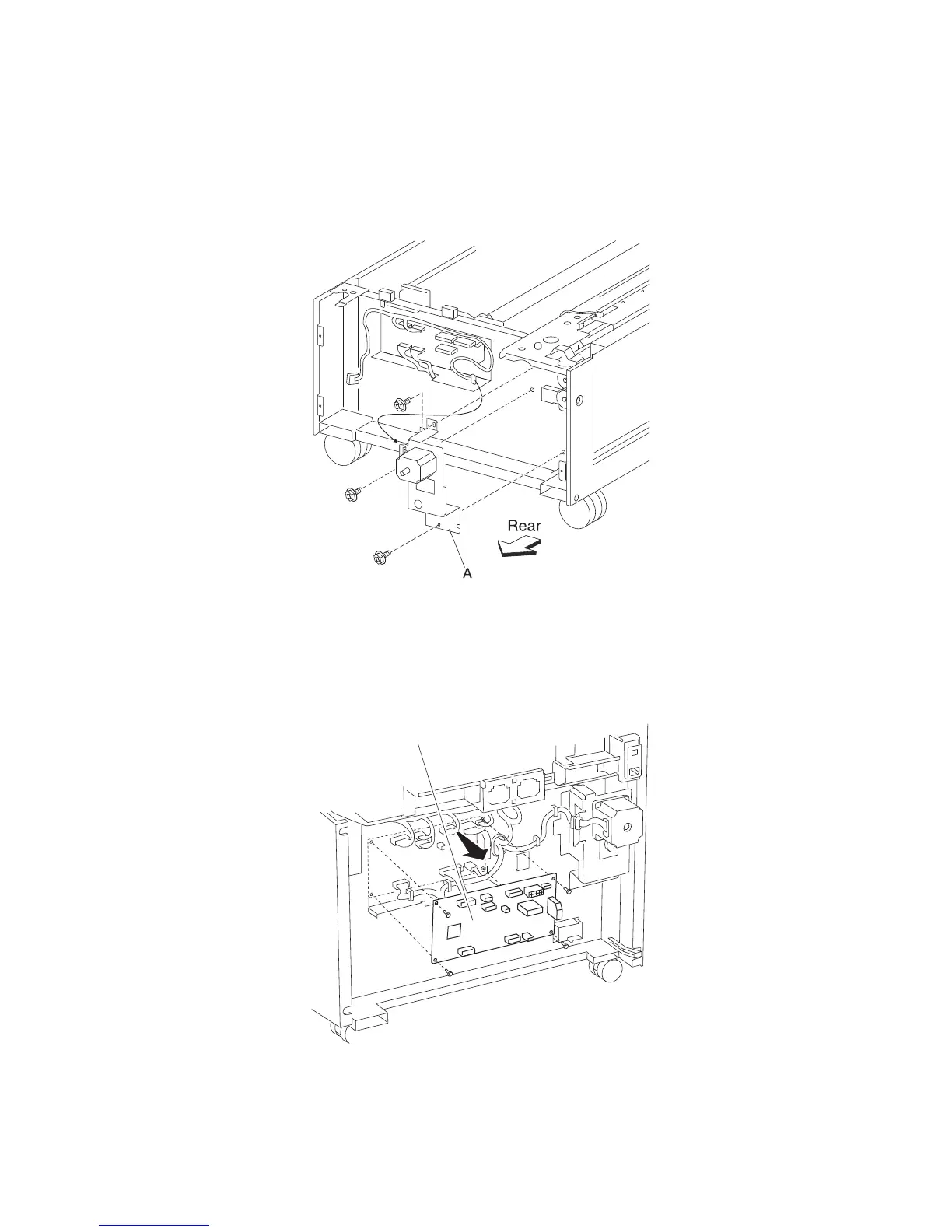

1X 500-sheet drawer (1TM)—tray module drive motor assembly removal
1. Remove the rear cover. See “1X 500-sheet drawer (1TM)–rear cover removal” on page 4-235.
2. Disconnect the connector from the tray module drive motor (A).
3. Remove the two screws securing the tray module drive motor (A) to the machine.
4. Remove the tray module drive motor (A).
1X 500-sheet drawer (1TM)—1TM controller card assembly removal
1. Remove the rear cover. See “1X 500-sheet drawer (1TM)–rear cover removal” on page 4-235.
2. Disconnect the seven connectors from the 1TM controller card assembly (A).
3. Remove the four screws securing the 1TM controller card assembly (A) to the machine.
4. Remove the 1TM controller card assembly (A).
