7-22 MFP Service Manual

7510

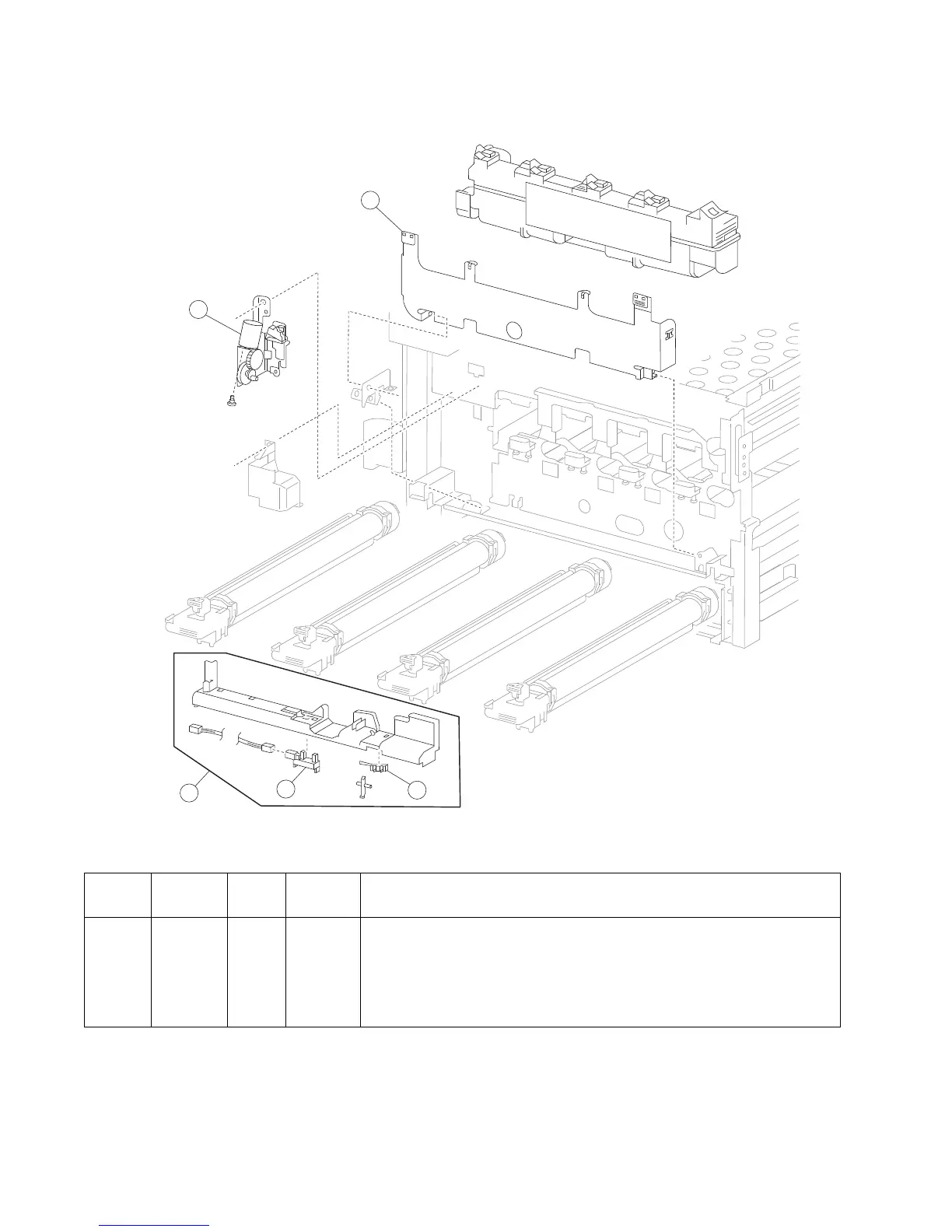

Assembly 20: Xerographic and waste toner

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3713 1 1 Waste toner cartridge cover

2 40X3715 1 1 Switch (waste toner cartridge interlock)

3 40X3717 1 1 Sensor (waste toner cartridge full)

4 40X3714 1 1 Waste toner cartridge sensor assembly (this comes assembled)

5 40X3716 1 1 Waste toner agitator motor assembly
