4-144 Service Manual
7510

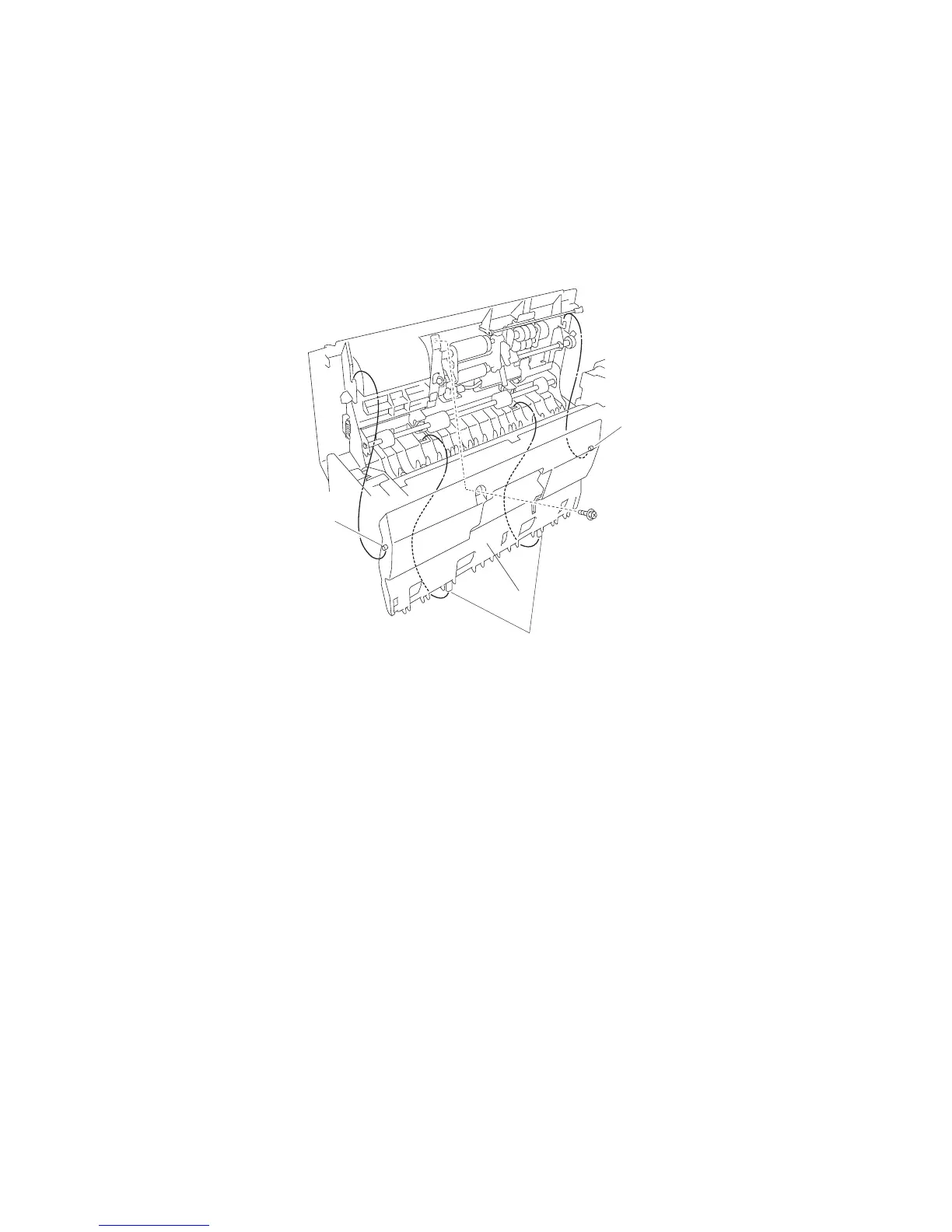

ADF left cover media guide removal
1. Open the ADF left cover assembly.
2. Remove the screw securing the ADF left cover media guide (A).
3. Lift the ADF left cover media guide (A) upward, then remove the two bosses from the slot, and remove the two
tabs from the holes.
4. Remove the ADF left cover media guide (A).
Replacement note: Before reinstalling the ADF left cover media guide (A), ensure that the two bosses and two
tabs are correctly installed, or jamming will occur.
Pick roll position motor assembly removal
1. Open the ADF left cover assembly.
2. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-144.
3. Remove the document set actuator. See “Document set actuator removal” on page 4-143.
4. Remove the screw from the green ground wire (A).
5. Remove the screw securing the grounding plate (B).
6. Remove the grounding plate (B).
7. Remove the two screws securing the harness guide (C).
8. Remove the harness guide (C).
9. Disconnect the connector from the pick roll position motor assembly (D).
10. Remove the screw securing the pick roll position motor assembly (D).
11. Remove the pick roll position motor assembly (D).
To Next Page
