7-28 MFP Service Manual

7510

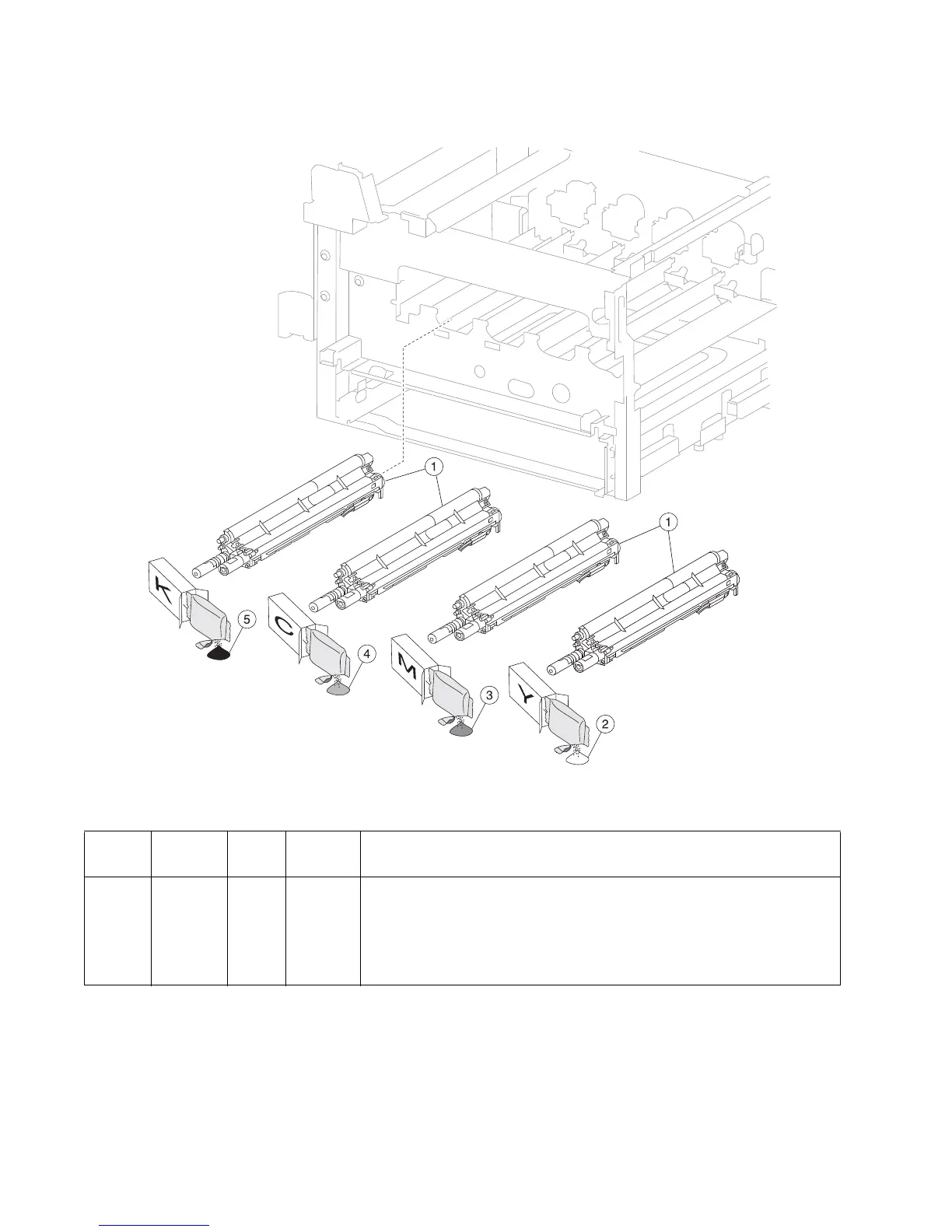

Assembly 26: Developer unit assemblies

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3742 4 1 Developer unit assembly

2 40X3744 1 1 Y developer carrier

3 40X3745 1 1 M developer carrier

4 40X3746 1 1 C developer carrier

5 40X3743 1 1 K developer carrier
