3X 500-sheet drawer (3TM)—sensor (tray 4 feed-out) removal

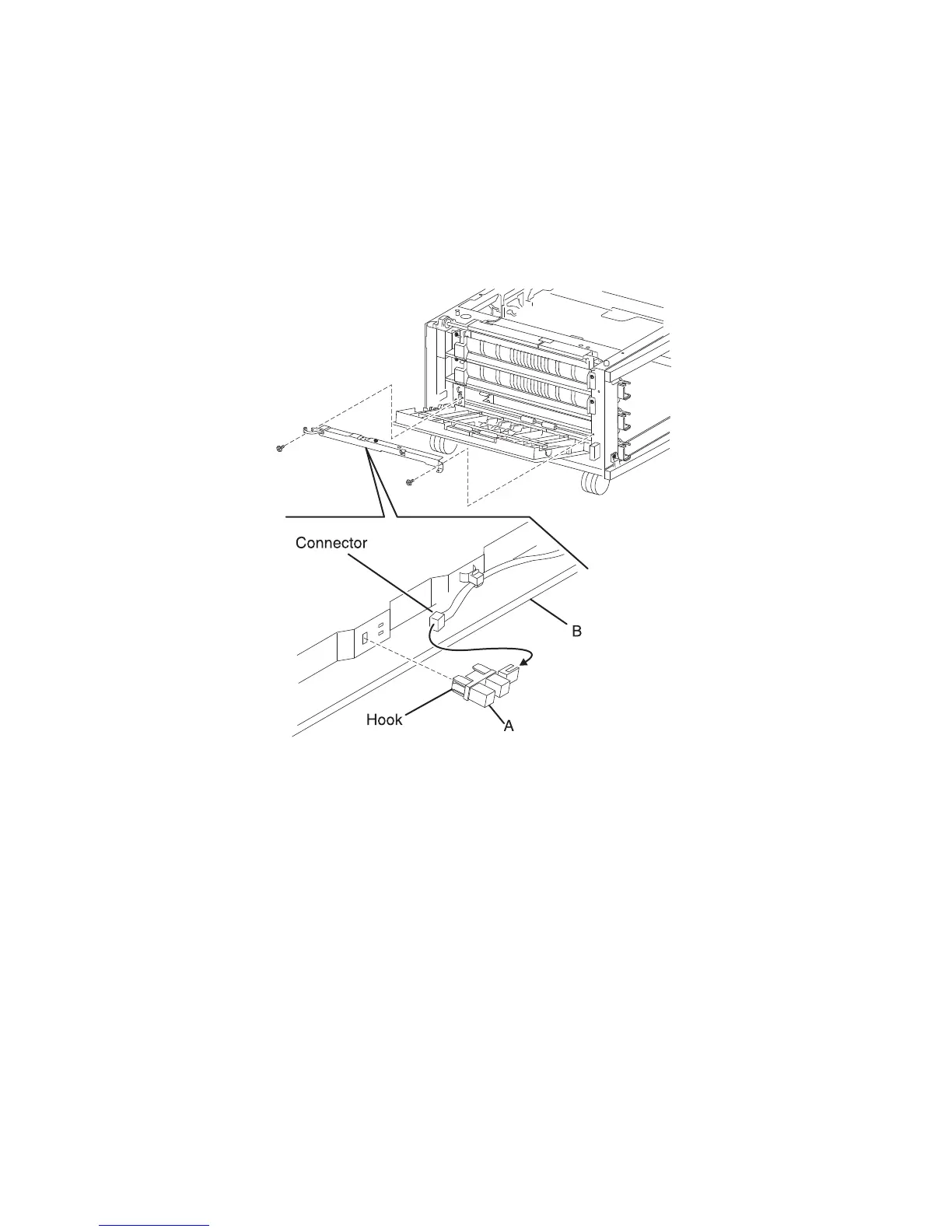

1. Open the 3TM left door assembly.
2. Remove the two screws securing the two support straps (A) to the machine.
3. Disconnect the connector from the sensor (tray 4 feed-out) (B).
4. Remove the two screws securing bracket (C) to the machine.
5. Remove the bracket (C).
6. Release the hooks securing the sensor (tray 4 feed-out) (B) to the bracket (C).
7. Remove the sensor (tray 4 feed-out) (B).
