Lexmark 940e - X Color Laser Service Manual

Repair information 4-243
7510
1X 500-sheet drawer (1TM)—sensor (media out) removal
1. Remove the media feed unit assembly. See “1X 500-sheet drawer (1TM)–media feed unit assembly
removal (tray 2)” on page 4-236.
2. Remove the media out actuator. See “1X 500-sheet drawer (1TM)–media out actuator removal” on
page 4-241.
3. Disconnect the connector from the sensor (media out) (A).
4. Release the hooks securing the sensor (media out) (A) to the media feed unit assembly.
5. Remove the sensor (media out) (A).

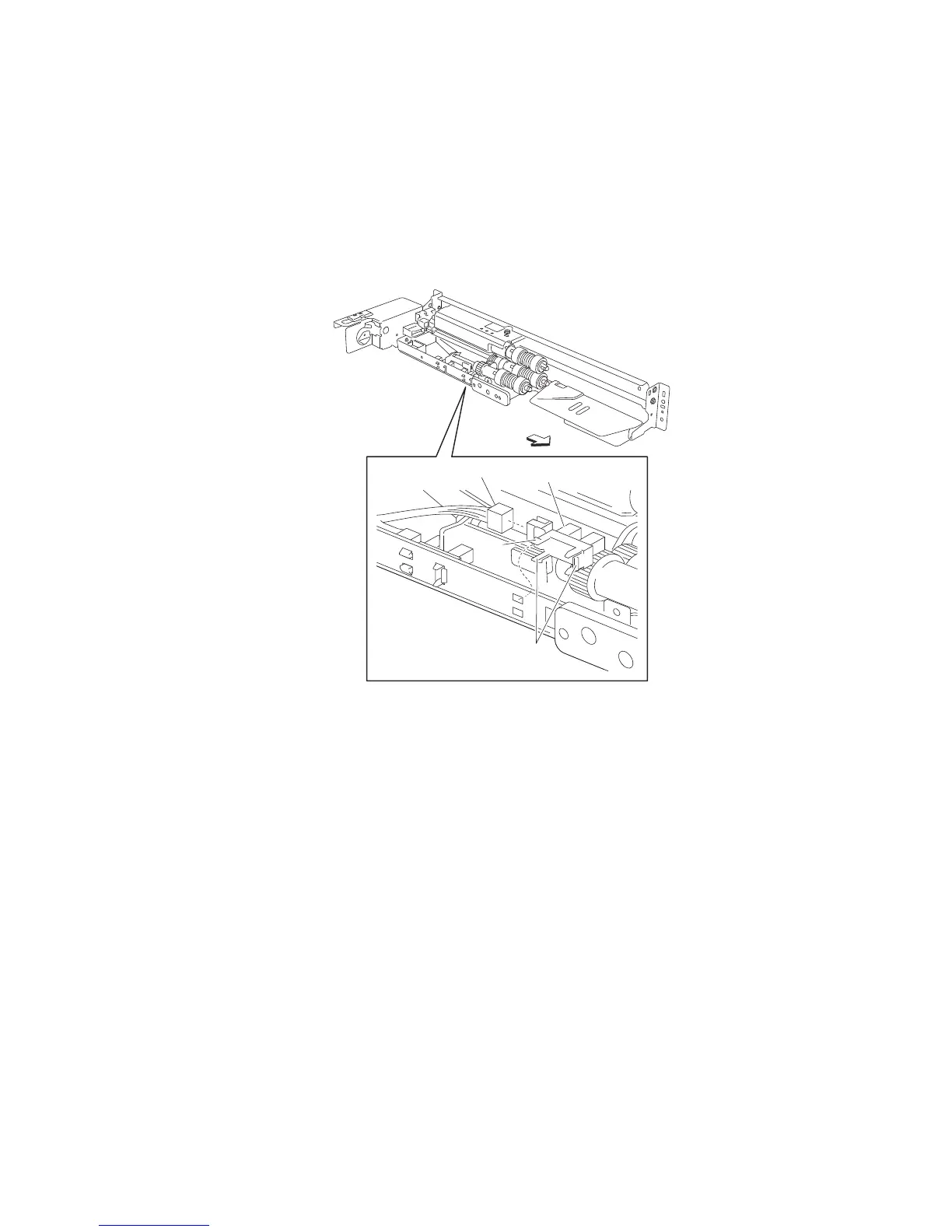

Front
Harness
A
Hooks
Lower view
Hook
