7-6 MFP Service Manual

7510

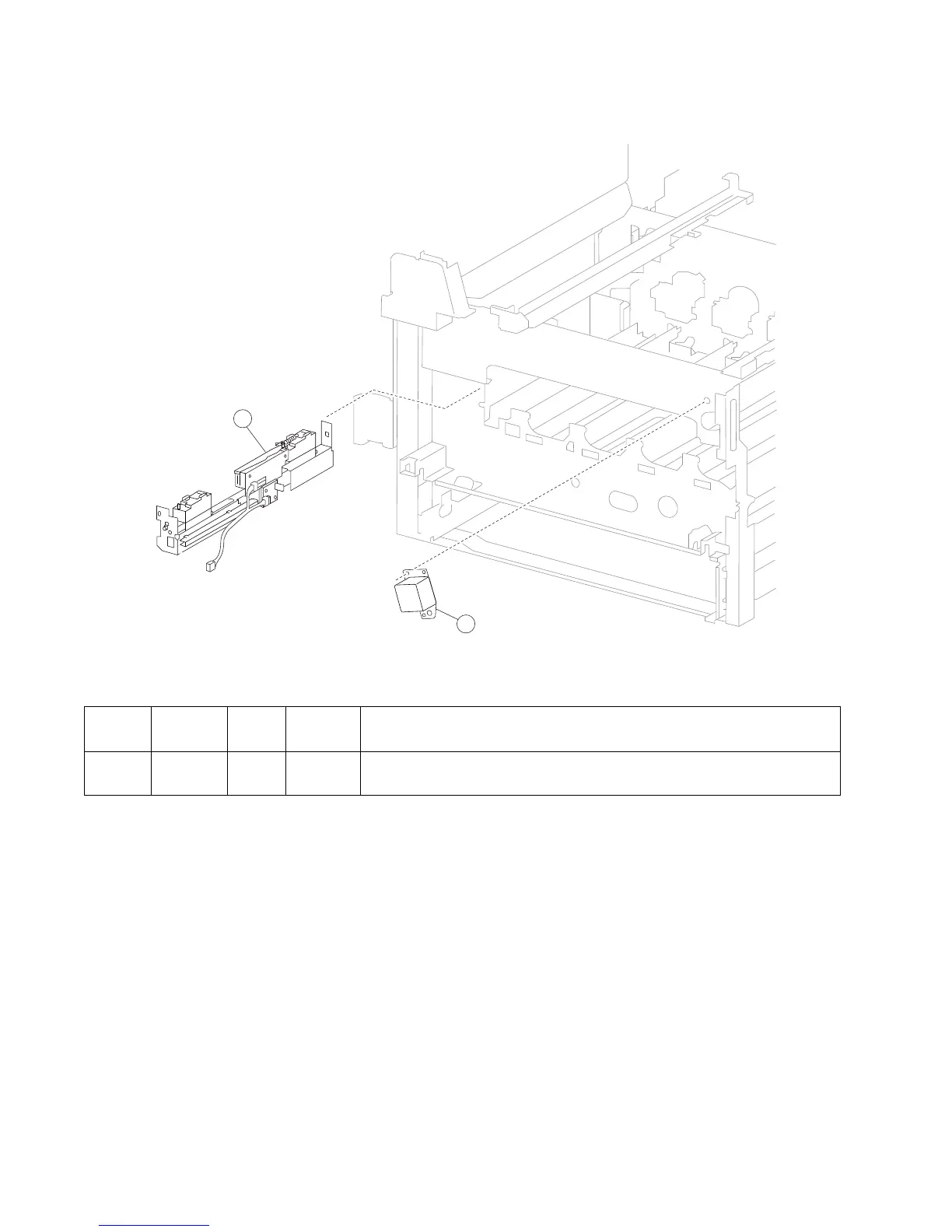

Assembly 5: ID sensor and transfer belt steering

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3674 1 1 Image density sensor assembly

2 40X3673 1 1 Transfer belt steering motor
