Repair information 4-183
7510
2000-sheet dual input (TTM)–media feed unit assembly 2 removal

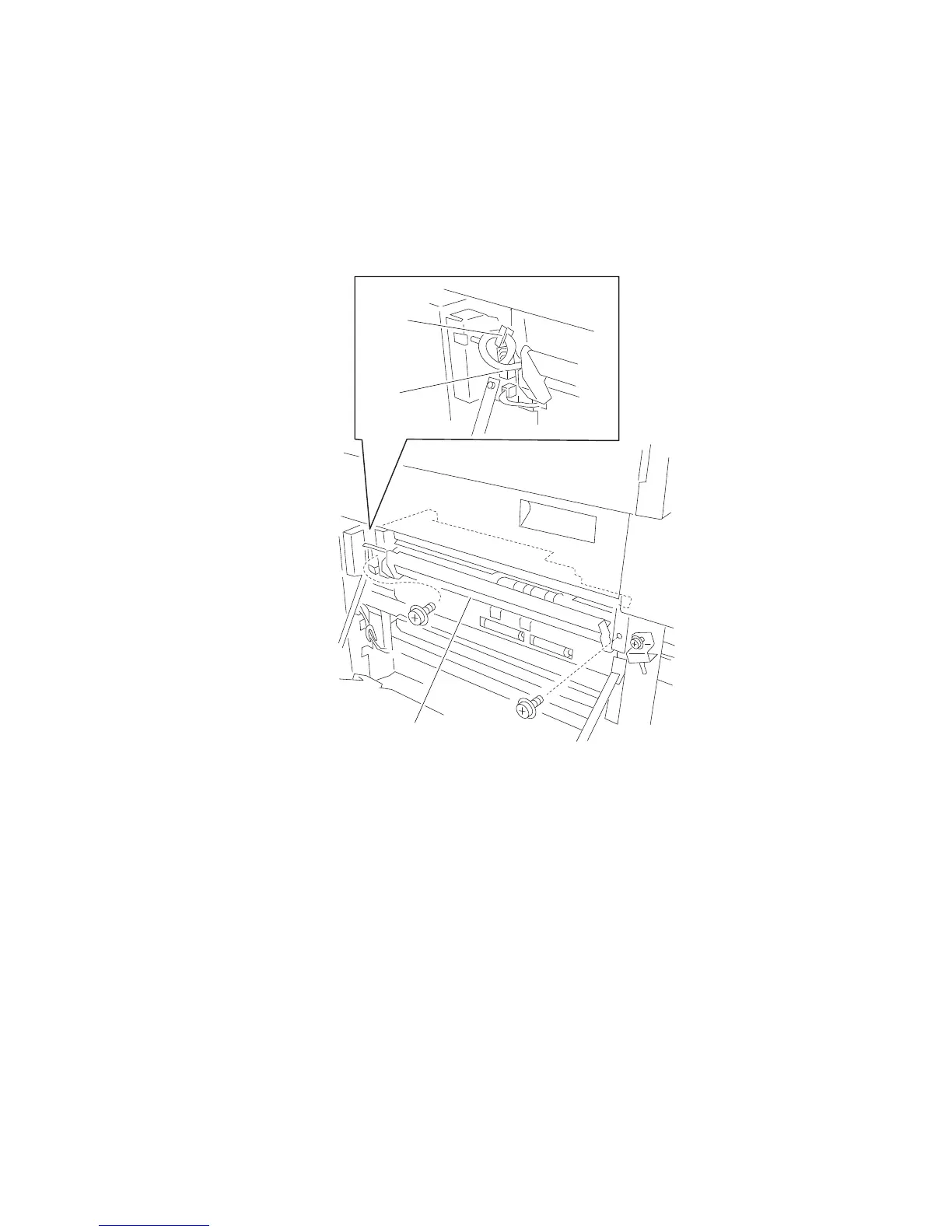

1. Remove the media tray 2.
2. Open the TTM left door assembly.
3. Disconnect the connector from the media feed unit assembly (A).
4. Release the harness from the clamp.
5. Remove the two screws securing the media feed unit assembly (A) to the machine.
6. Remove the media feed unit assembly.
2000-sheet dual input (TTM)—media feed unit assembly removal (tray 3)
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on
page 4-167.
2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly
removal” on page 4-171.
3. Remove the two screws securing the two support straps (A) to the machine.
4. Remove the three screws securing the media feed unit assembly (B) to the machine.
5. Release the harness from the clamp.
6. Disconnect the connector from the media feed unit assembly (B).
7. Remove the media feed unit assembly (B).
8. Remove the two screws securing the bracket (C) to the assembly.
9. Remove the bracket (C).
