General information 1-59
7510
Bottom plate
The force pushing up the bottom plate is transmitted by the driving force of the motor on the media feed unit
assembly. The bottom plate is pushed up by the rotation of the lift up shaft, which causes the supplied media to
come in contact with the pick roll.
The force pushing up the bottom plate of tray 3 is transmitted by the driving force of the media feed lift motor on
the media feed unit assembly to the media lift shaft assembly through the tray lift gear assembly 3. The bottom
plate is lifted up via the rear tray cables, front right cable and front left cable by the rotation of the tray lift shaft
assembly, which causes the supplied media to come into contact with the pick roll.
The force pushing up the bottom plate of tray 4 is transmitted to the tray lift shaft assembly through the tray lift
gear assembly 4. The bottom plate is lifted up via the front tray cables and rear tray cables by the rotation of the
tray lift shaft assembly, which causes the supplied media to contact the pick roll.

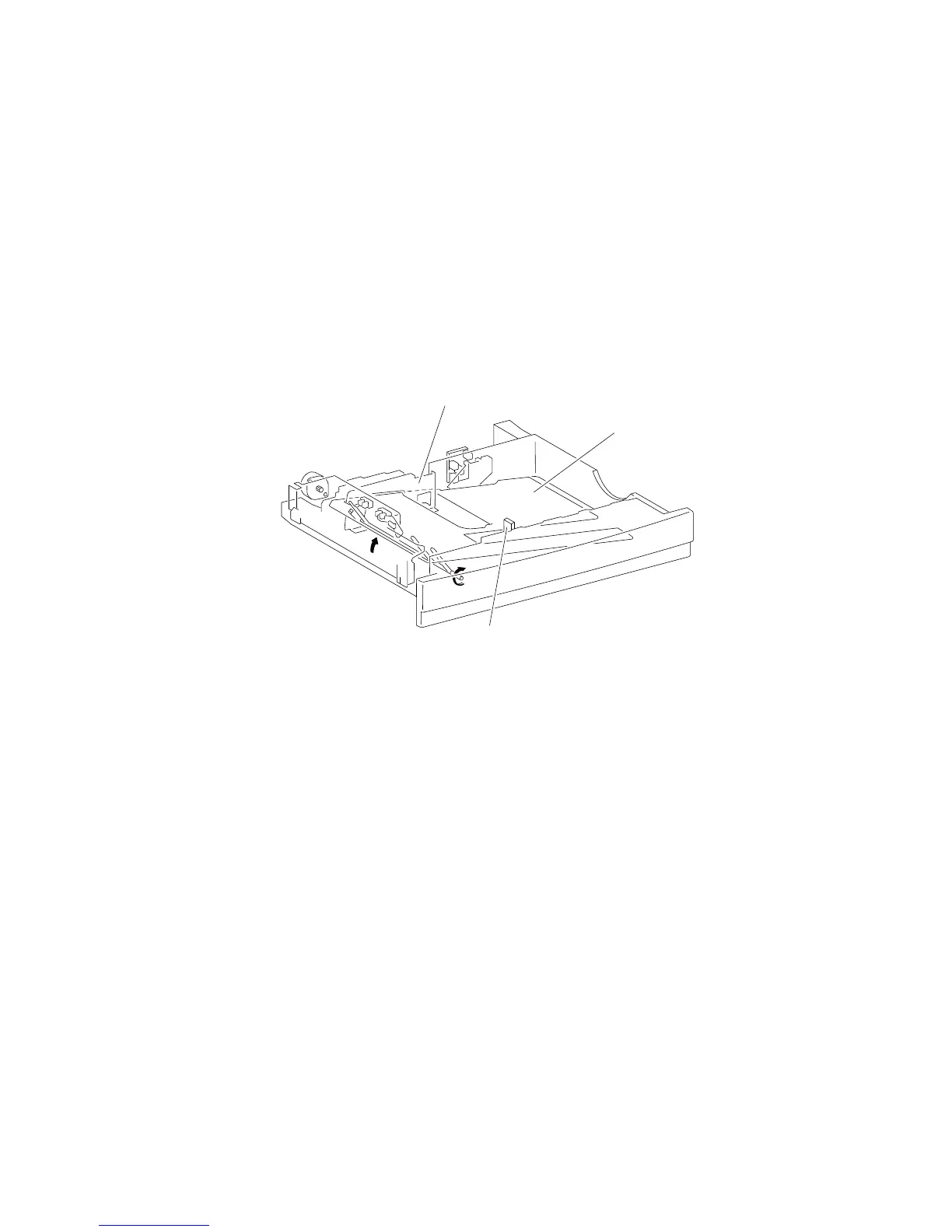

Tray 2 media tray assembly
Rear media guide
Bottom plate
End guide
