Parts catalog 7-13

7510

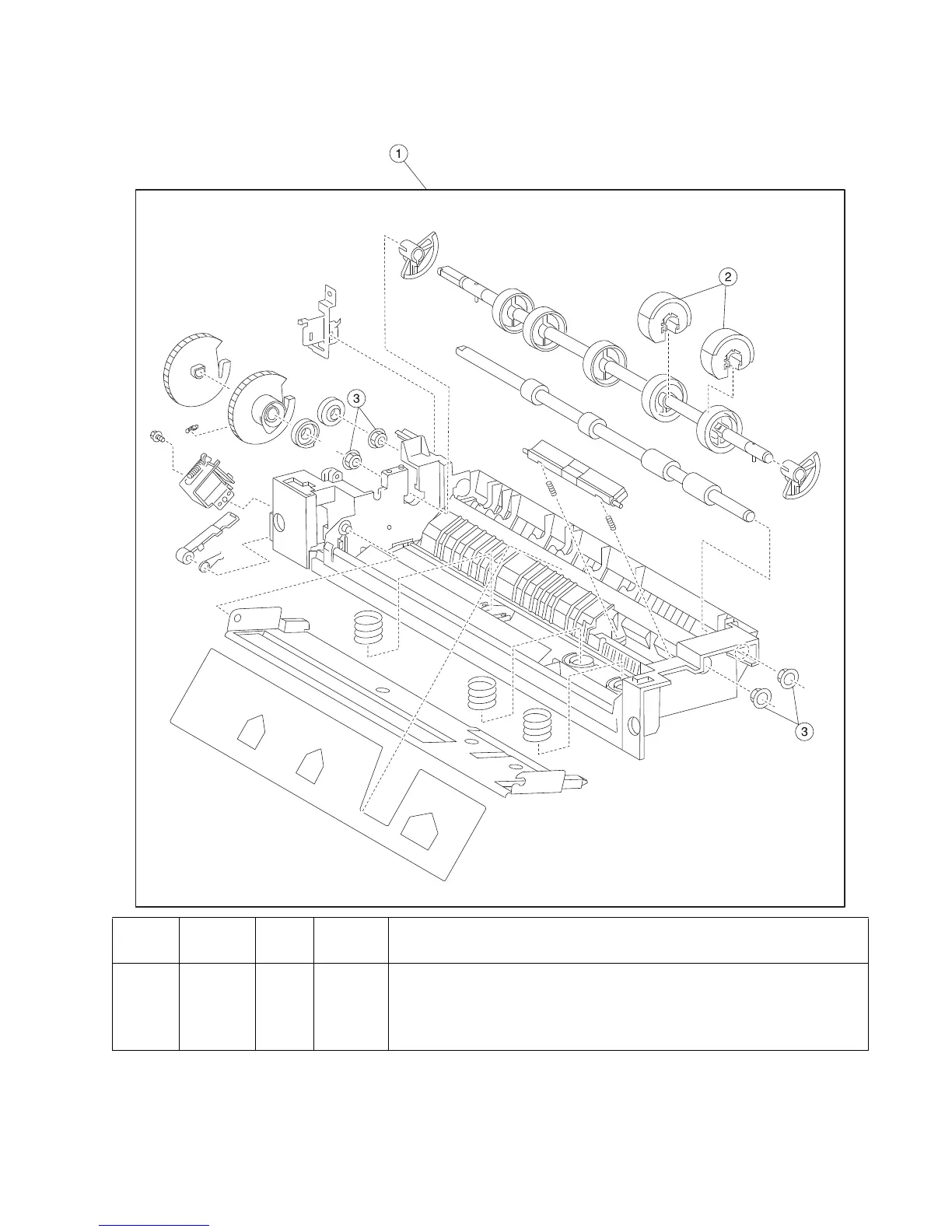

Assembly 11: MPF feed unit assembly 3

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X4079 1 1 MPF feed unit assembly (this comes assembled)

2 40X3711 1 2 MPF pick roll kit

• MPF pick roll (2)

3 40X1381 4 1 Bushing 8 mm
