Lexmark 940e - X Color Laser Service Manual

4-236 Service Manual
7510

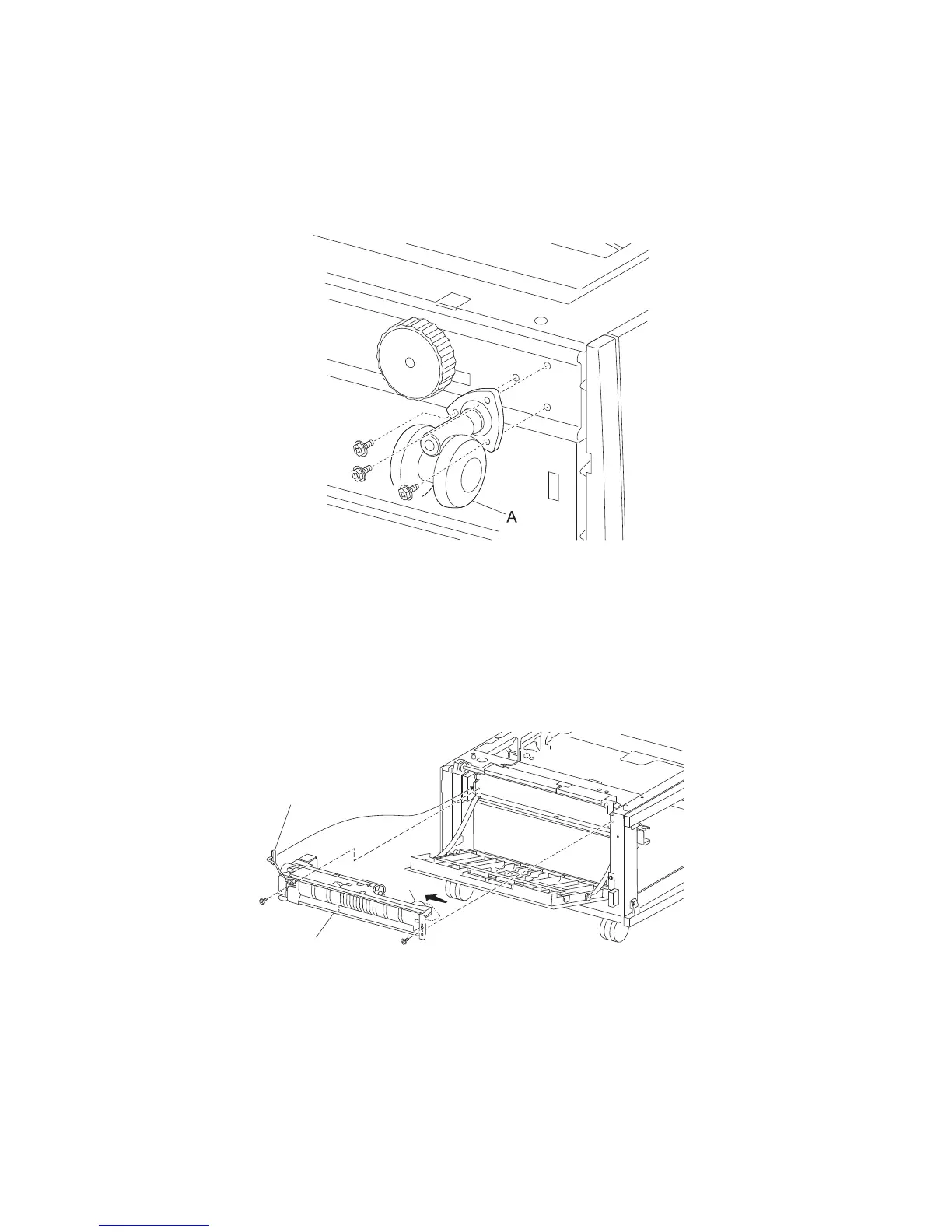

1X 500-sheet drawer (1TM)—caster removal
1. Remove the media tray 2 assembly.
2. Place the right side of the drawer down.
3. Remove the three screws securing the caster (A).
4. Remove the caster (A).
1X 500-sheet drawer (1TM)—media feed unit assembly removal (tray 2)
1. Remove the media tray 2 assembly.
2. Open the 1TM left door assembly.
3. Release the harness from the clamp.
4. Disconnect the connector from the media feed unit assembly (A).
5. Remove the two screws securing the media feed unit assembly (A) to the machine.
6. Remove the media feed unit assembly (A).
Connector
A
