3X 500-sheet drawer (3TM)—sensor (media level) removal
1. Remove the media feed unit assembly. See“3X 500-sheet drawer (3TM)–media feed unit assembly removal
(tray 2)” on page 4-215 or “3X 500-sheet drawer (3TM)–media feed unit assembly removal (tray 3)” on
page 4-213.
2. Disconnect the connector from the sensor (media level) (A).
3. Release the hooks securing the sensor (media level) (A) to the media feed unit assembly.
4. Remove the sensor (media level) (A).

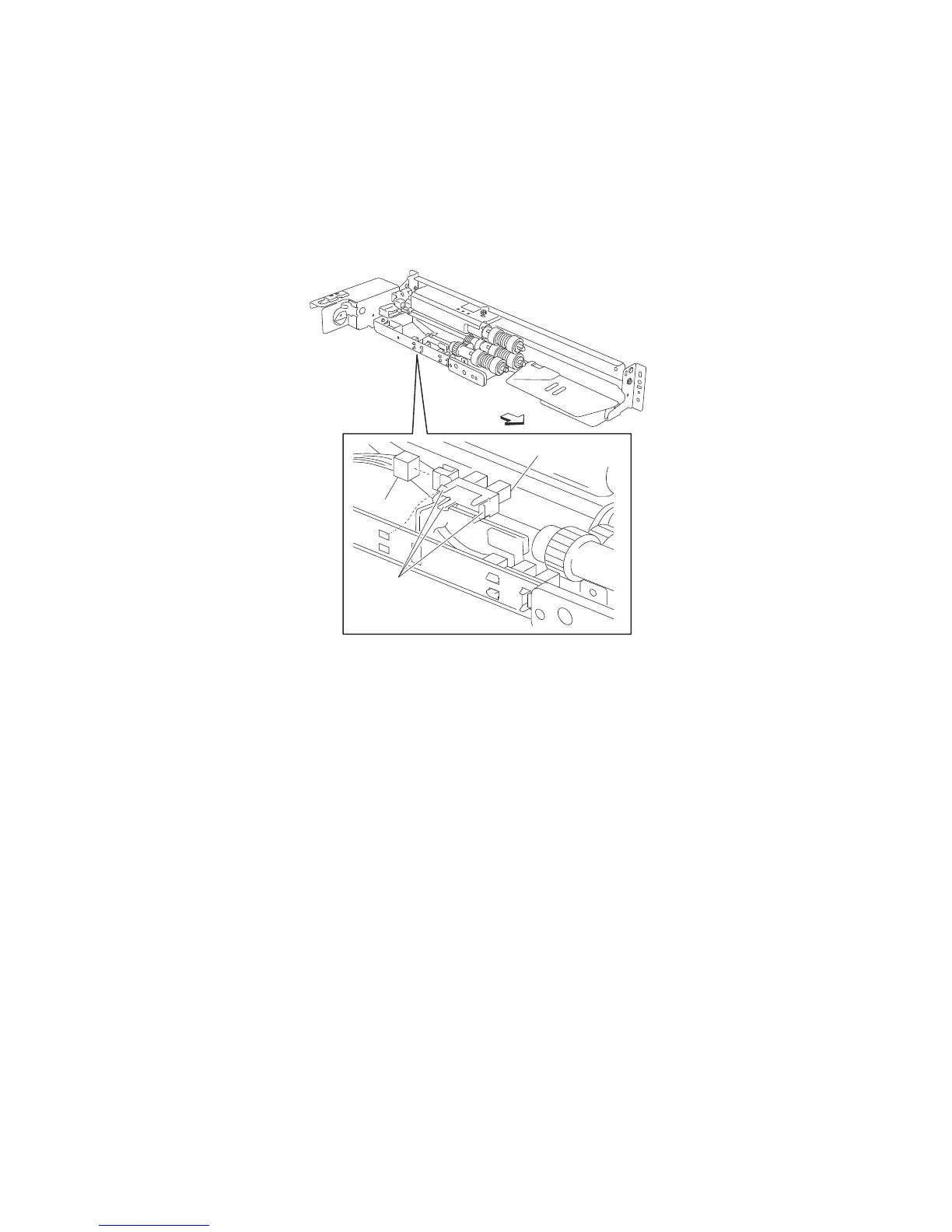

Front
Harness
Hooks
Lower view
A
