Parts catalog 7-85

7510

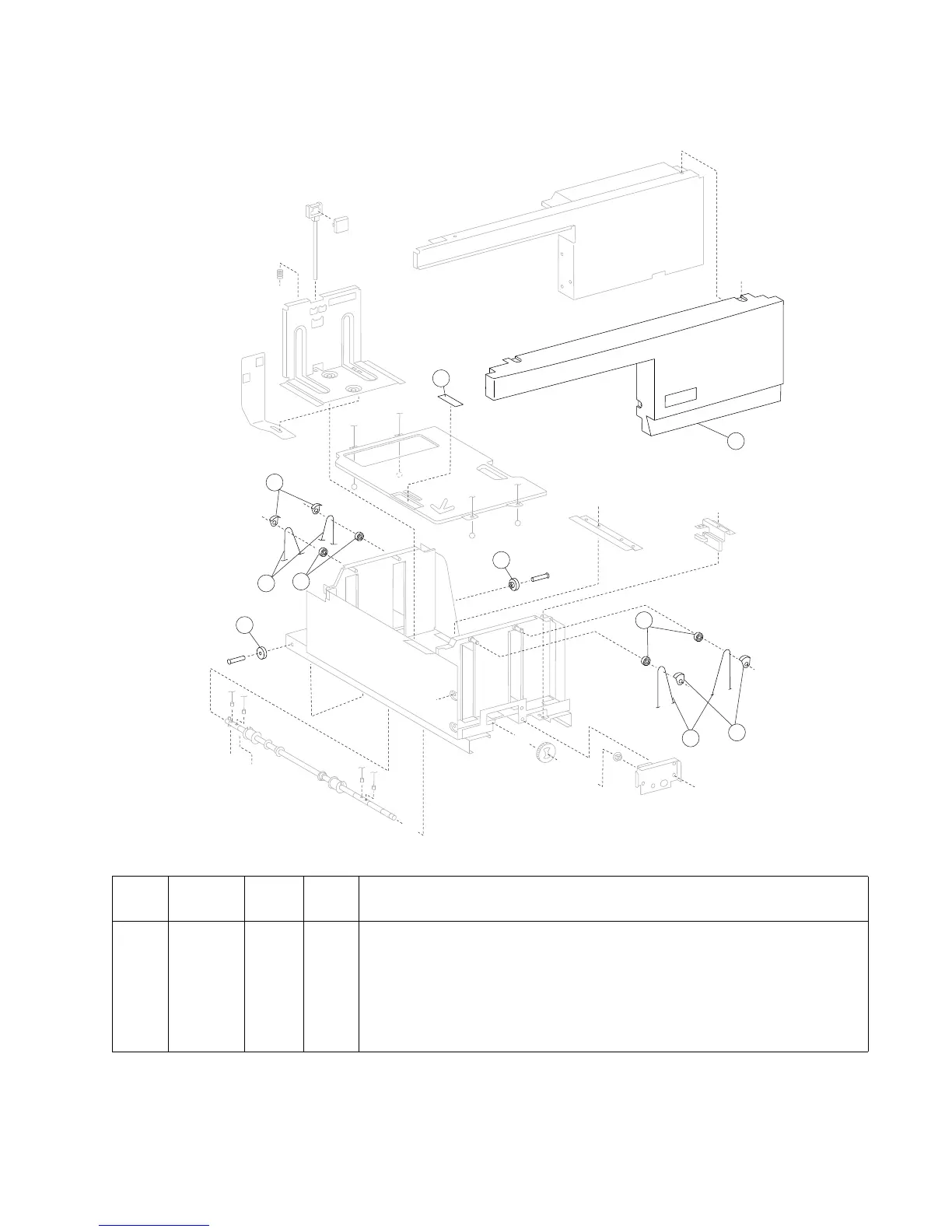

Assembly 62: TTM media tray 4

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3836 1 1 TTM tray 4 front cover

2 40X4126 4 1 TTM tray lift idler pulley

3 40X4127 4 1 TTM tray lift idler pulley guide

4 40X4085 4 1 TTM tray 4 lift cable

5 40X0723 1 2 TTM tray 4 rear support roll (2)

6 40X0711 2 1 TTM tray separation pad
