3-26 Service Manual
7510
ENGINE ADJUST
To begin PH Adjust (media tray registration), the test page must be printed.
To print the test page the printer must be in standard mode.
1. Select Menus.
2. Select Reports.
3. Select Network Setup Page

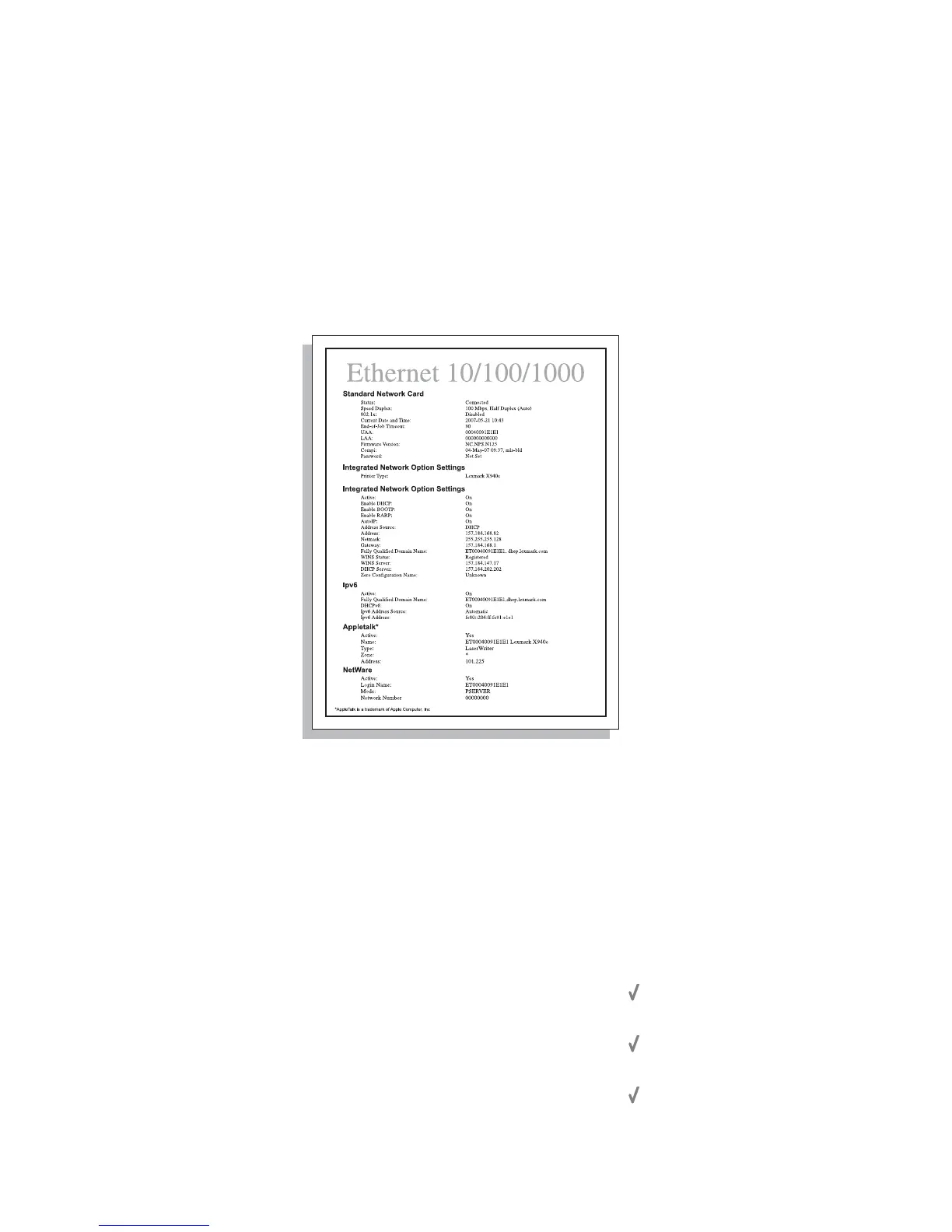

The following report prints.
Using a fine incremental ruler, measure from the black line border to the edge of the media. Ideally, the borders
should be centered on the page.
To perform the ENGINE ADJUST settings:
1. Select ENGINE ADJUST from the Diagnostics Menu.
The following tests appear on the LCD:
Select the
following:
Then select: ( Appears on the LCD:
PH Adjust
(Media tray
registration)
Adj Side Reg ALL (appears on LCD)
(Adj side reg all trays)
Registration values appear on the
LCD. If required, reset the values
and Select to submit the changes.
Adj Side Reg MSI (appears on LCD)
(Adj side reg MPF)
Registration values appear on the
LCD. If required, reset the values
and Select to submit the changes.
Adj Side Reg DUP (appears on LCD)
(Adj side reg duplex)
Registration values appear on the
LCD. If required, reset the values
and Select to submit the changes.
