Repair information 4-191
7510
2000-sheet dual input (TTM)—sensor (media level) removal
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)– tray module left cover removal” on
page 4-167.
2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)–TTM media tray 3 assembly
removal” on page 4-171.
3. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)–TTM media tray 4 assembly
removal” on page 4-170.
4. Remove the tray 4 media transport assembly. See “2000-sheet dual input (TTM)–TTM tray 4 media
transport assembly removal” on page 4-175.
5. Remove the media feed unit assembly. See “2000-sheet dual input (TTM)–media feed unit assembly 2
removal” on page 4-183, “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 3)” on
page 4-183, or “2000-sheet dual input (TTM)–media feed unit assembly removal (tray 4)” on page 4-179.

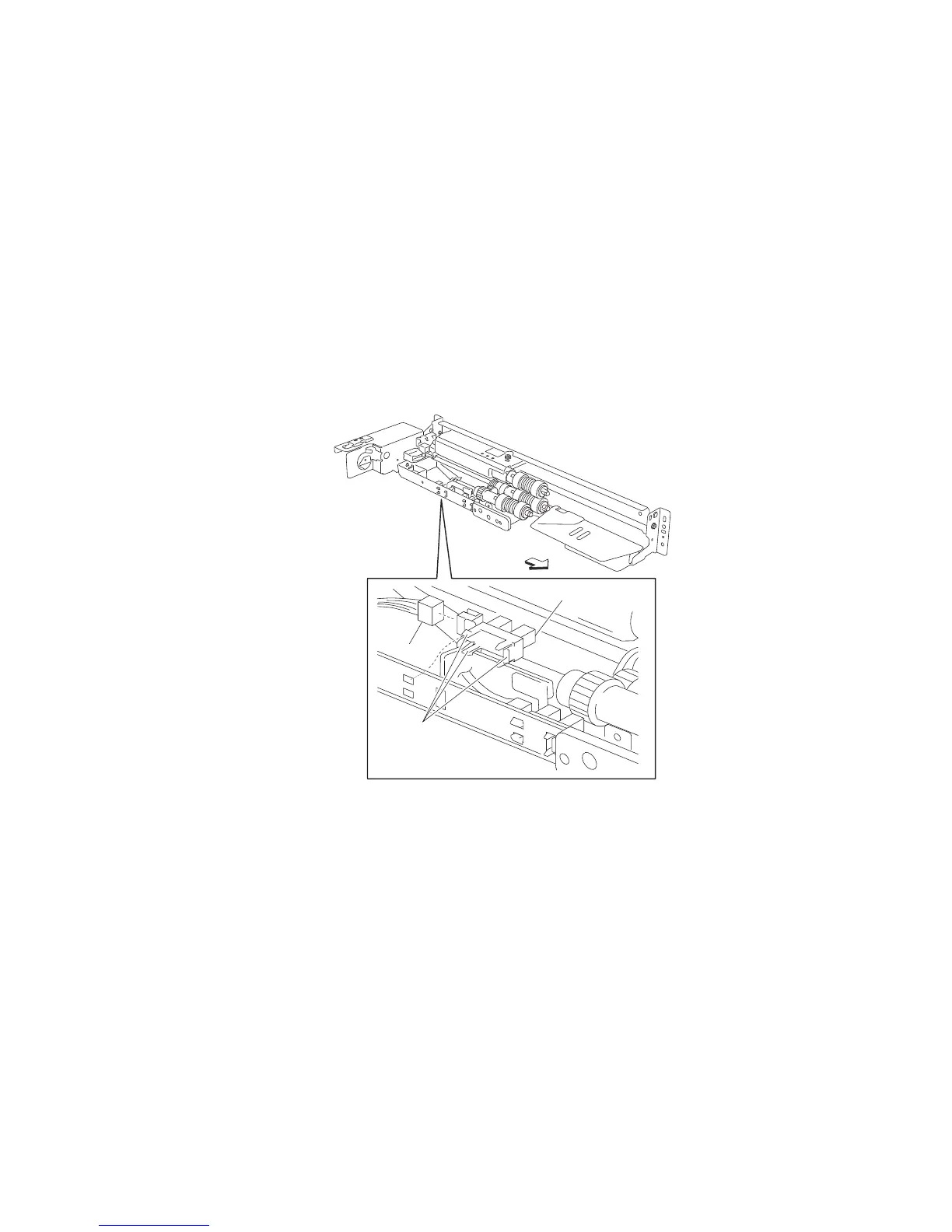

6. Disconnect the connector from the sensor (media level) (A).
7. Release the hooks securing the sensor (media level) (A) to the media feed unit assembly.
8. Remove the sensor (media level) (A).
Front
Harness
Hooks
Lower view
A
To Next Page
