7-4 MFP Service Manual

7510

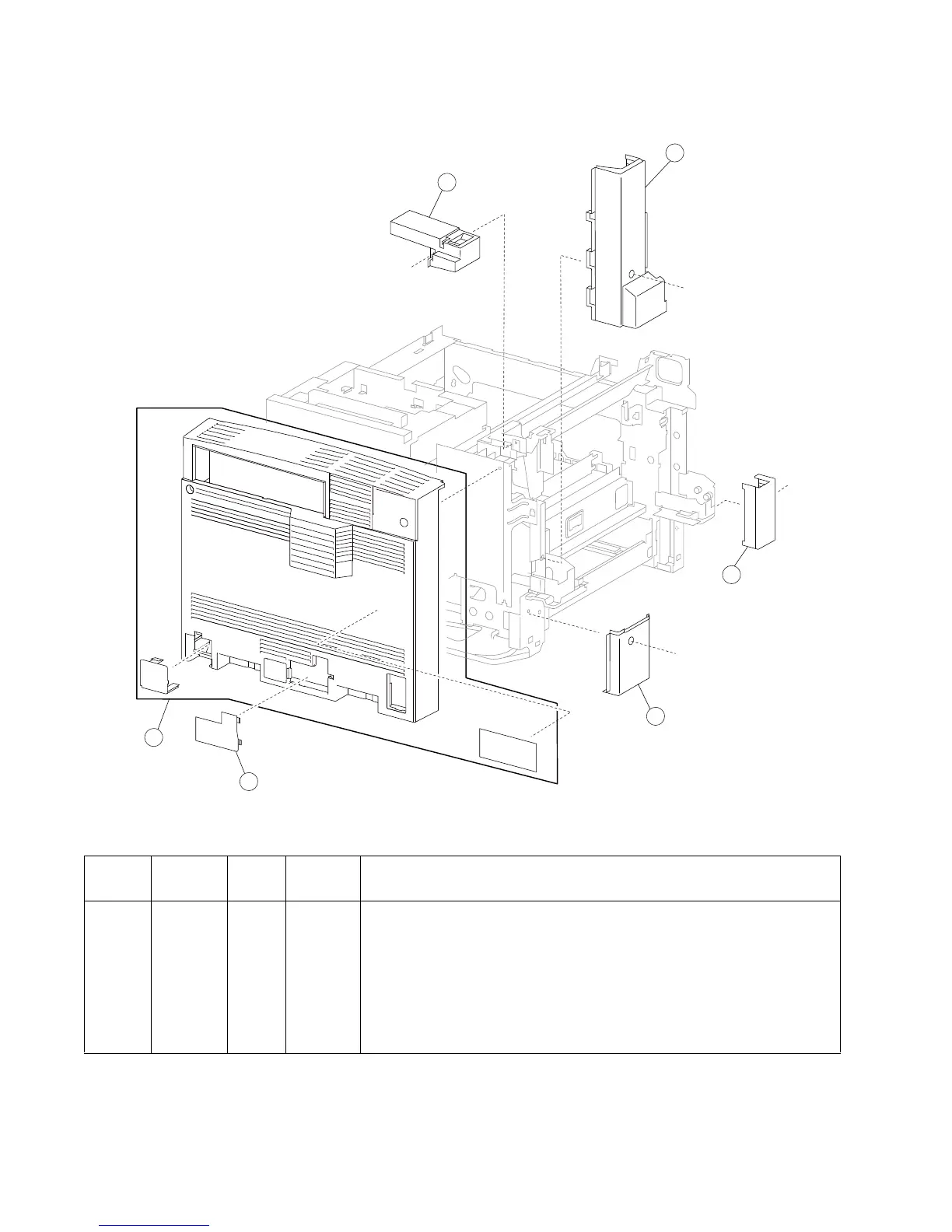

Assembly 3: Covers 3

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3796 1 1 Rear left upper cover

2 40X3793 1 1 Rear left middle cover

3 40X3795 1 1 Left front cover

4 40X3794 1 1 Rear left lower cover

5 40X3788 1 1 Rear blind cover

6 40X3789 1 1 Rear cover assembly 110 V

6 40X3790 1 1 Rear cover assembly 220 V
