7-26 MFP Service Manual

7510

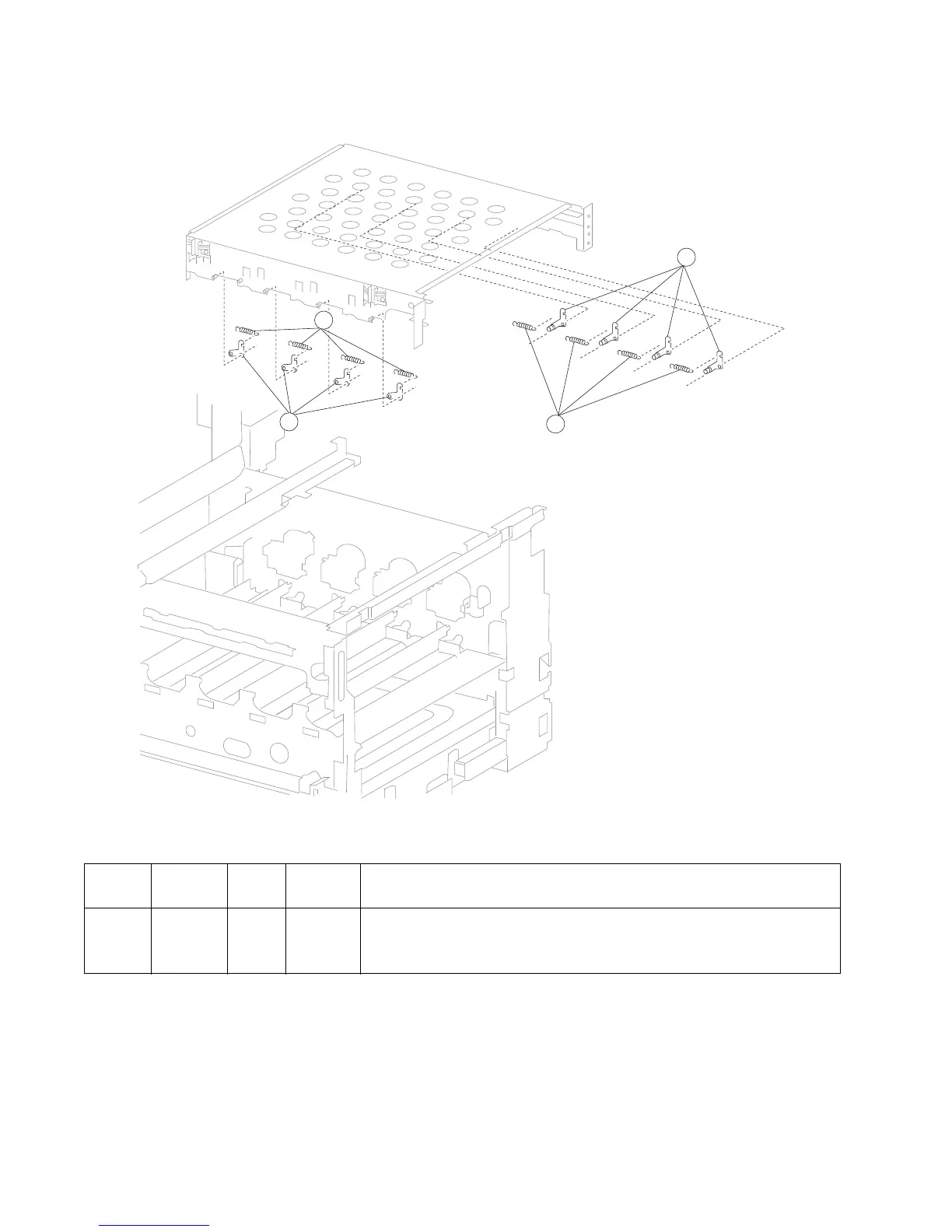

Assembly 24: Transfer belt lift 2

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3735 4 1 Transfer belt lift rear plunger assembly

2 40X3734 8 1 Transfer belt lift recoil spring

3 40X3736 4 1 Transfer belt lift front plunger assembly
