Lexmark 940e - X Color Laser Service Manual

4-170 Service Manual
7510
2000-sheet dual input (TTM)—TTM media tray 4 assembly removal

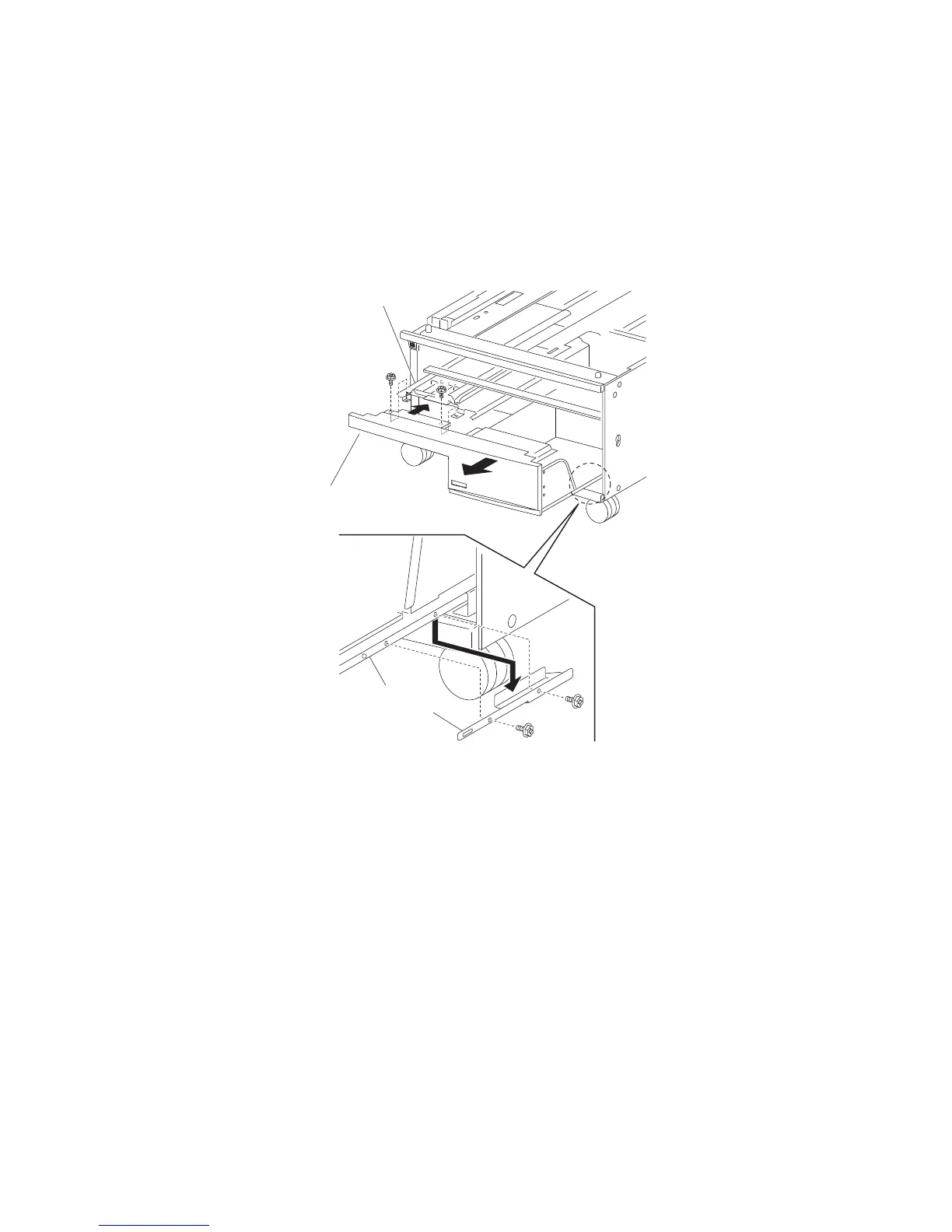

1. Pull out the TTM media tray 4 assembly.
2. Remove the two screws securing the TTM tray 4 media transport assembly (A) to the TTM media tray 4 assembly
(B).
3. Push the TTM tray 4 media transport assembly (A) into the machine in the direction of the arrow.
4. Remove the two screws securing the TTM tray 4 stopper (C) to the lower part of TTM media tray 4 assembly (B).
5. Remove the TTM tray 4 stopper (C).
6. Remove the TTM tray 4 assembly (B).
A
C
B
B
