Lexmark 940e - X Color Laser Service Manual

4-178 Service Manual
7510
2000-sheet dual input (TTM)—tray 4 front cables removal
1. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)–TTM media tray 4 assembly
removal” on page 4-170.
2. Remove the tray 4 front cover. See “2000-sheet dual input (TTM)–TTM media tray 4 front cover removal” on
page 4-175.

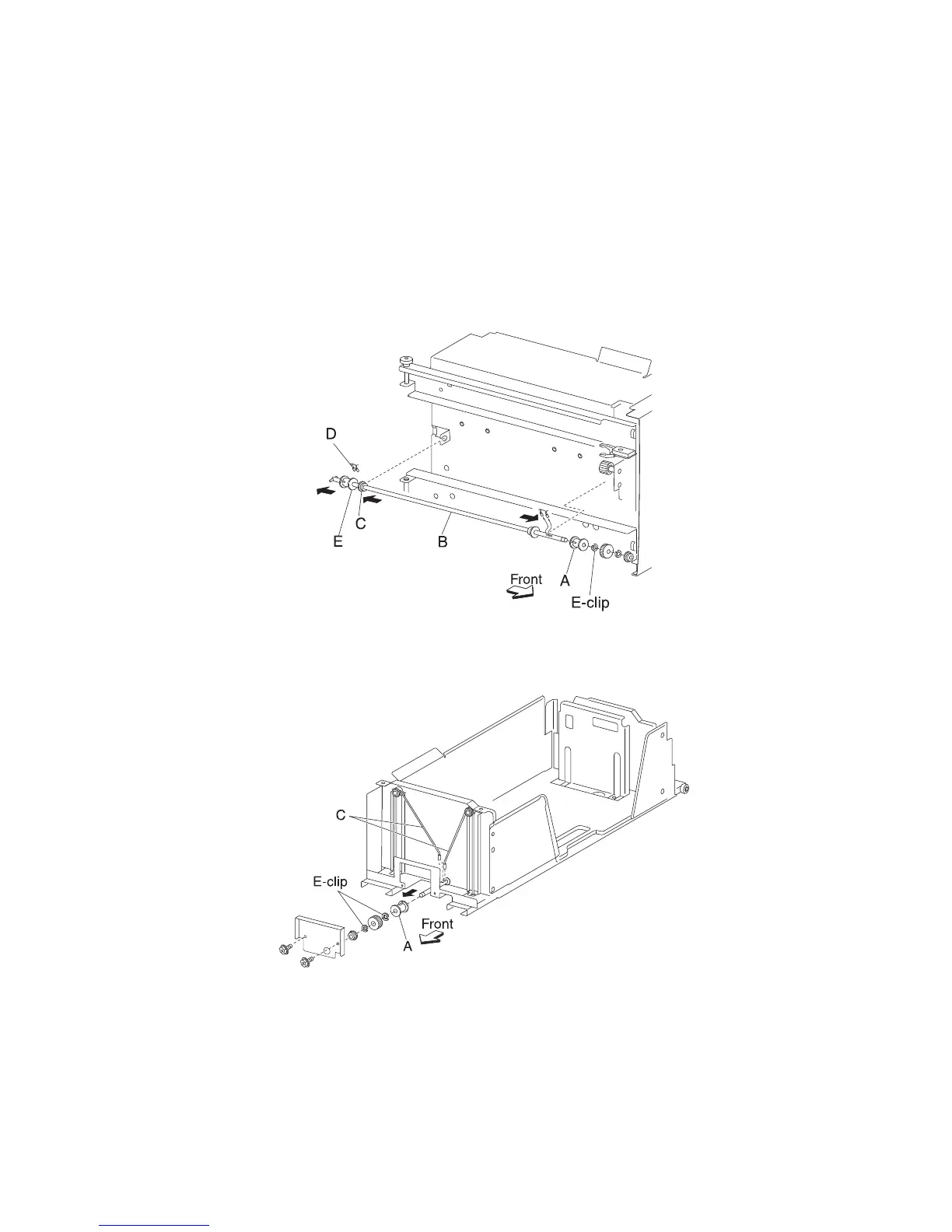

3. Place the TTM media tray 4 assembly on its right side, as shown in the figure.
4. Remove the E-clip with a prying tool securing the front tray lift pulley (A) to the tray lift shaft assembly (B).
5. Remove the front tray lift pulley (A).
Note: The tray 4 front cables (C) become detached.
6. Remove the tray 4 front cables (C) from the tray lift shaft assembly (B).
7. Place the TTM media tray 4 assembly back in its upright position.
8. Remove two E-clips with a prying tool securing the two small pulleys (D) on the front of the frame assembly.
9. Remove the two small guides (E) and the two small pulleys (D).

Lexmark 940e - X Color Laser Specifications

General

Print Technology	Laser
Max Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Fax Modem Speed	33.6 Kbps
Functionality	Copier, Fax, Printer, Scanner
Connectivity Technology	USB, Ethernet
Operating System Support	MS Windows XP
Scan Type	Flatbed
Connectivity	USB, Ethernet
