7-16 MFP Service Manual

7510

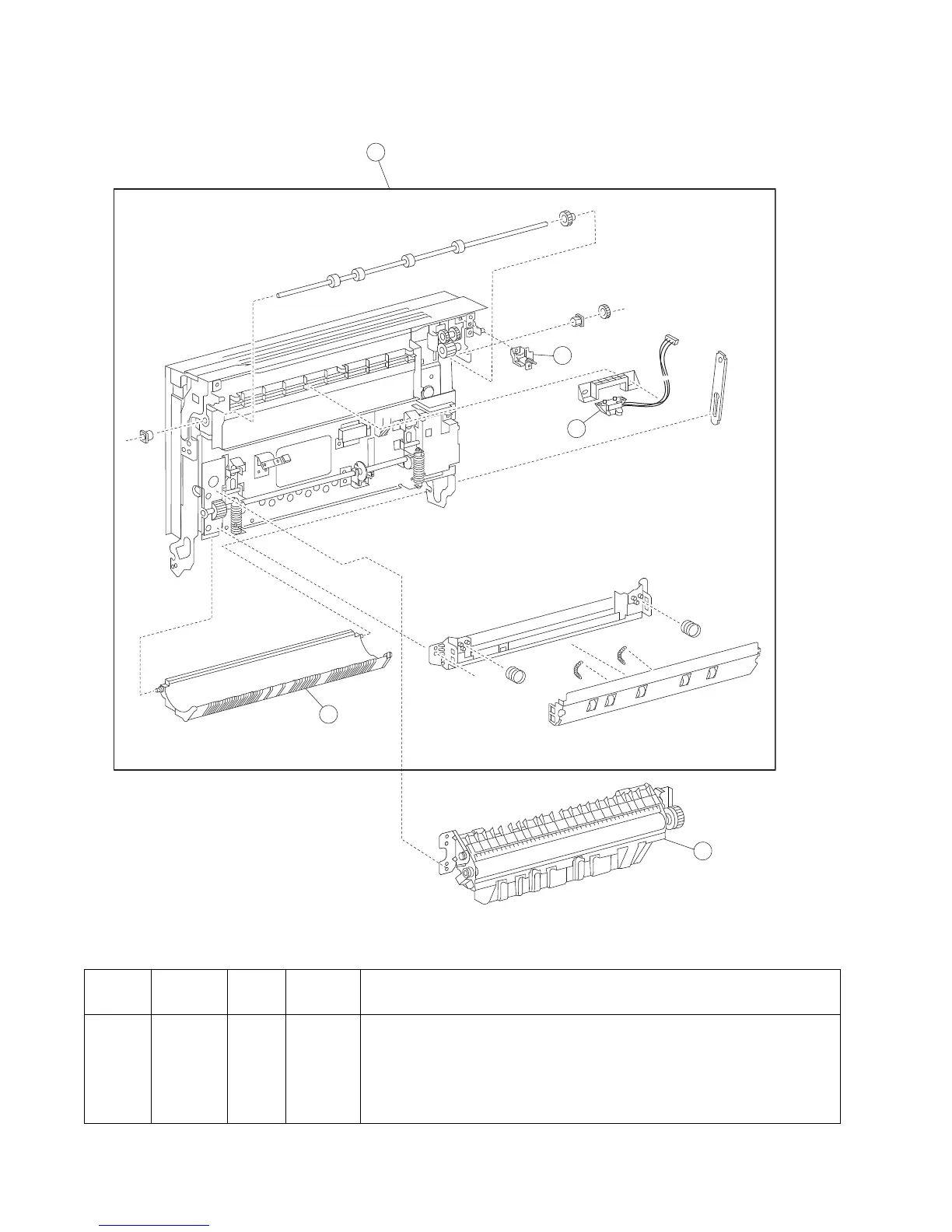

Assembly 14: Printer left door assembly 1

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X4078 1 1 Printer left door assembly (this comes assembled)

2 40X4098 1 1 Printer left door closed actuator

3 40X3699 1 1 Sensor (fuser exit)

4 40X3698 1 1 2nd transfer roll assembly

5 40X3700 1 1 Printer left door duplex exit guide
