7-8 MFP Service Manual

7510

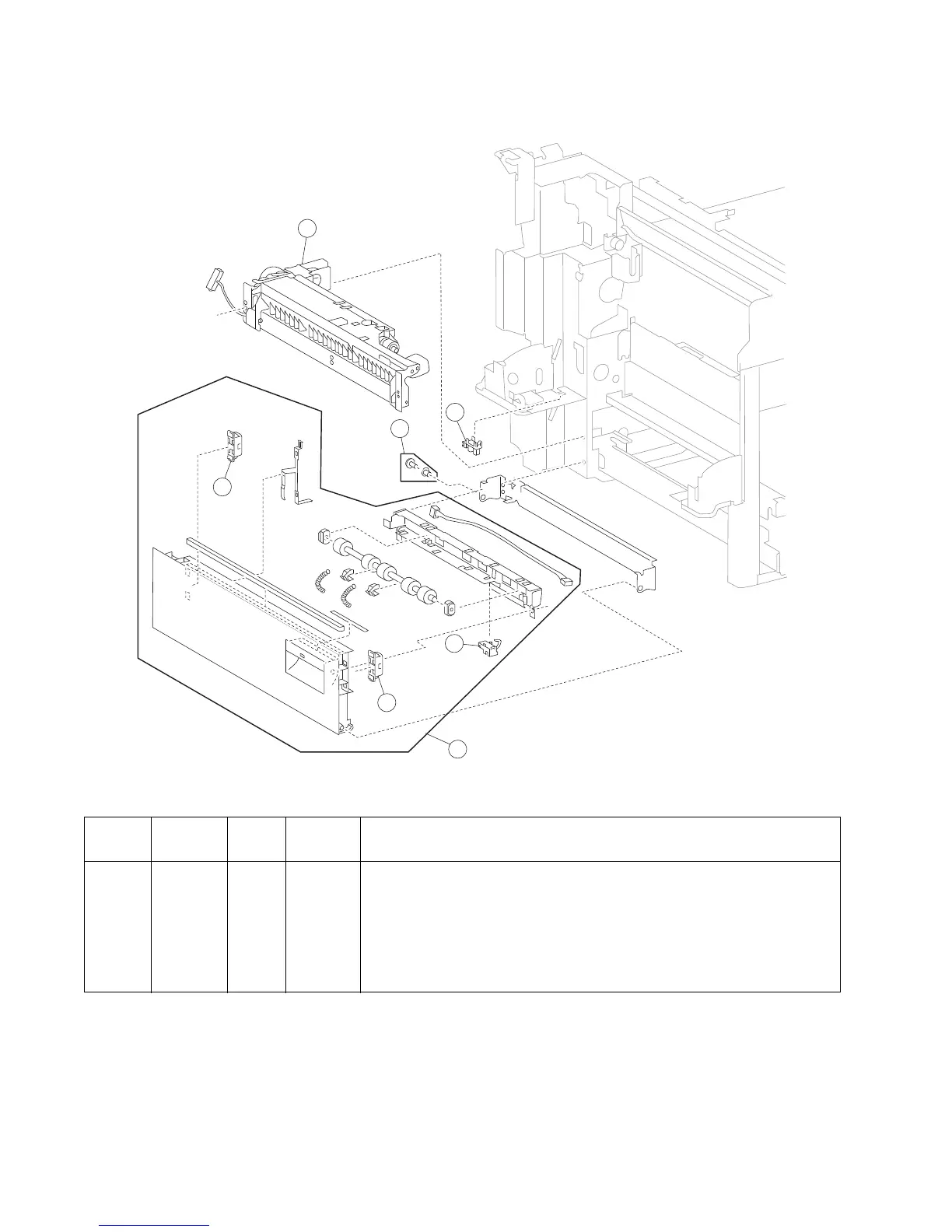

Assembly 7: Printer left lower door and media feed unit

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3679 4 1 Media feed unit assembly

2 40X3688 30 1 Sensor (printer left lower door interlock)

3 40X0613 1 1 Hinge pin

4 40X3680 1 1 Printer left lower door assembly (this comes assembled)

5 40X3681 1 1 Sensor (tray 1 feed-out)

6 40X3682 2 1 Magnetic catch
