7-86 MFP Service Manual

7510

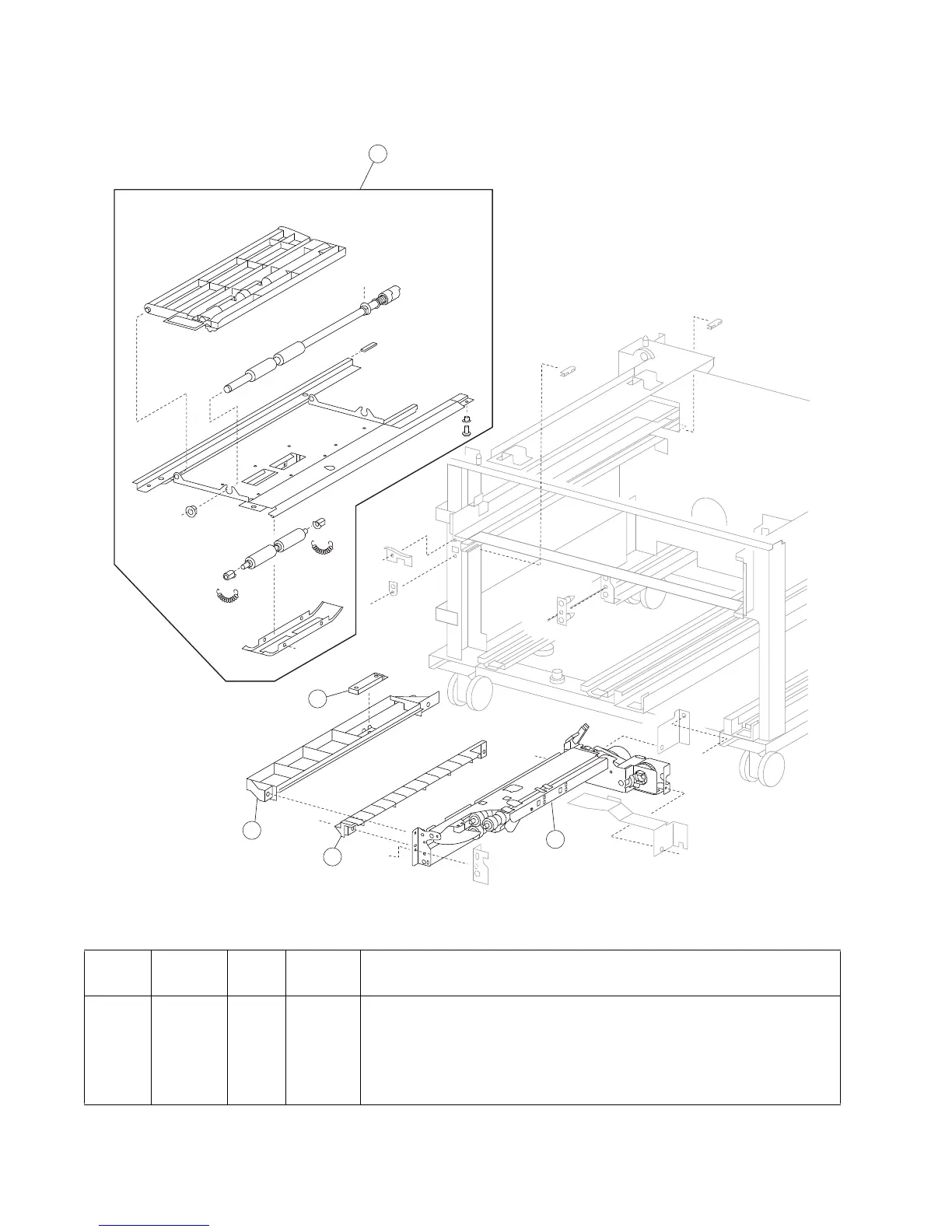

Assembly 63: TTM media tray 4 transport

Asm-

index

Part

number

FRUs/

mach

Units/

FRU

Description

1 40X3838 1 1 TTM tray 4 media transport assembly

2 40X3679 1 1 Media feed unit assembly

3 40X3841 1 1 TTM tray 4 lower media guide

4 40X3840 1 1 TTM tray 4 upper media guide

5 40X3694 2 1 Sensor (tray 4 feed-out)
