Repair information 4-175
7510
2000-sheet dual input (TTM)—TTM media tray 4 front cover removal

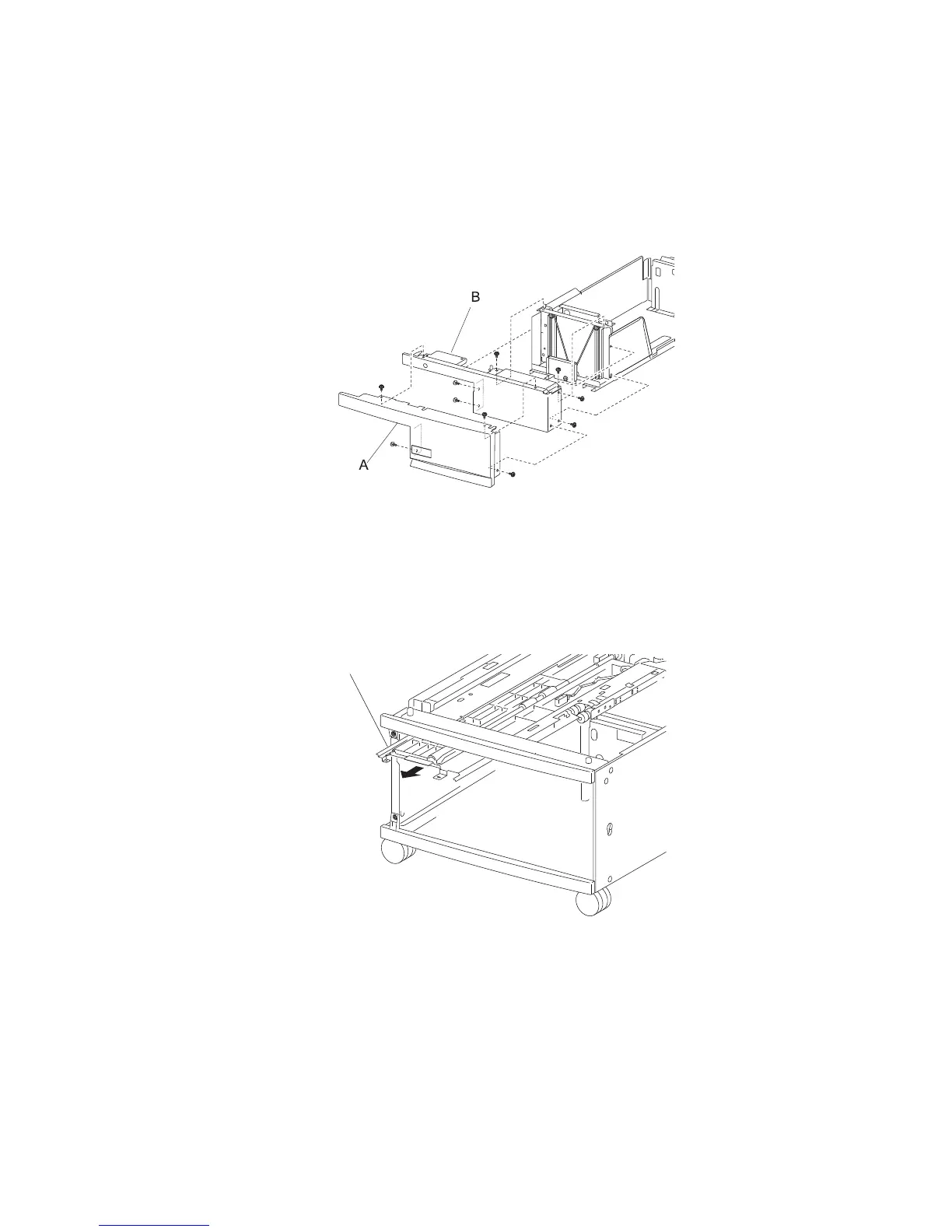

1. Pull out the TTM media tray 4 assembly.
2. Remove the four screws securing the TTM tray 4 front cover (A).
3. Remove the TTM tray 4 front cover (A).
4. Remove the six screws securing the bracket (B) to the tray.
5. Remove the bracket (B).
2000-sheet dual input (TTM)—TTM tray 4 media transport assembly removal
1. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)–TTM media tray 4 assembly
removal” on page 4-170.
2. Remove the TTM tray 4 media transport assembly (A).
Replacement note: Before re-installing, insert the TTM tray 4 media transport assembly (A) into the rails of the
frame assembly.
2000-sheet dual input (TTM)—tray 4 rear cables removal
1. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)–TTM media tray 4 assembly
removal” on page 4-170.
2. Remove the TTM media tray 4 front cover. See “2000-sheet dual input (TTM)–TTM media tray 4 front cover
removal” on page 4-175.
3. Place the TTM media tray 4 assembly on its right side as shown in the figure.
4. Remove the E-clip with a prying tool securing the tray lift cable pulley (A) to the tray lift shaft assembly (B).
To Next Page
