Lexmark 940e - X Color Laser Service Manual

4-108 Service Manual
7510
Separation roll removal

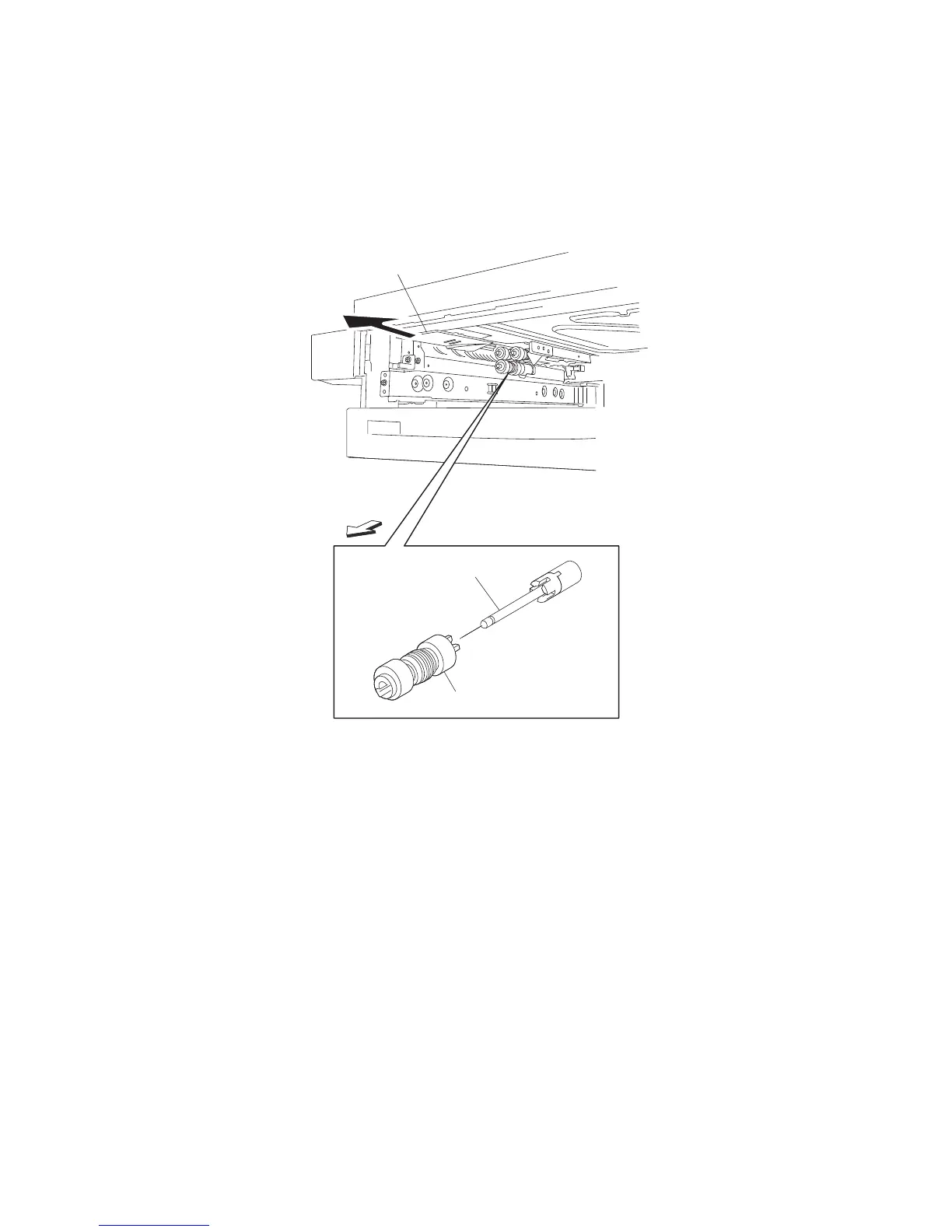

1. Remove the media tray.
2. Move the feed unit front guide (A) in the direction of the arrow.
3. Release the hook securing the separation roll (B) to the shaft (C).
4. Remove the separation roll (B).
Note: Do not touch the rubber surface of the feed roll (B).
Replacement note: Before reinstalling, do not touch the rubber surface of the separation roll (B).
A
C
B
Front
