Repair information 4-245

7510

1X 500-sheet drawer (1TM)—feed roll one-way clutch removal

1. Remove the media tray assembly.

2. Remove the feed roll. See “2000-sheet dual input (TTM)–feed roll removal” on page 4-193.

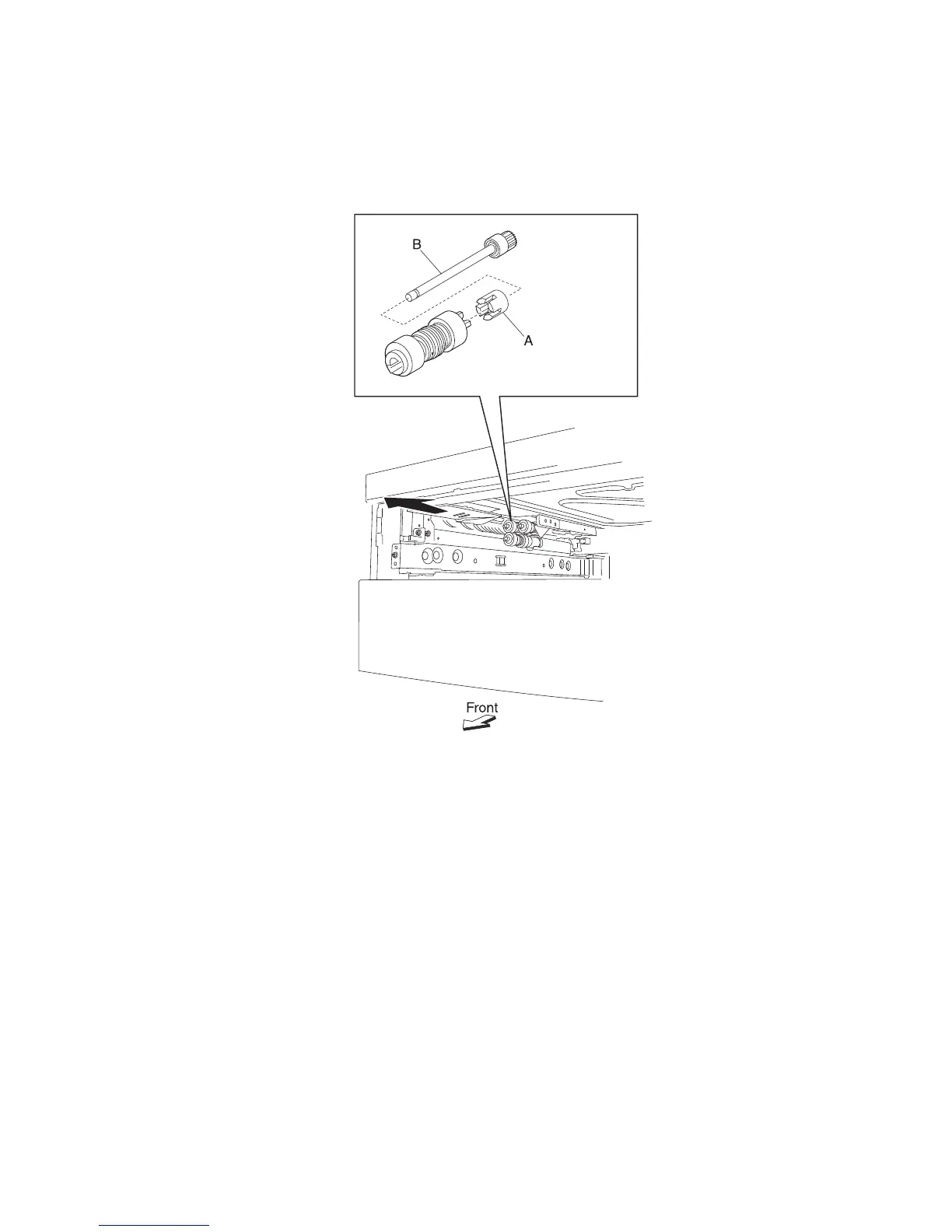

3. Remove the feed roll one-way clutch (A) from the shaft (B).
