Lexmark 940e - X Color Laser Service Manual

Repair information 4-149
7510

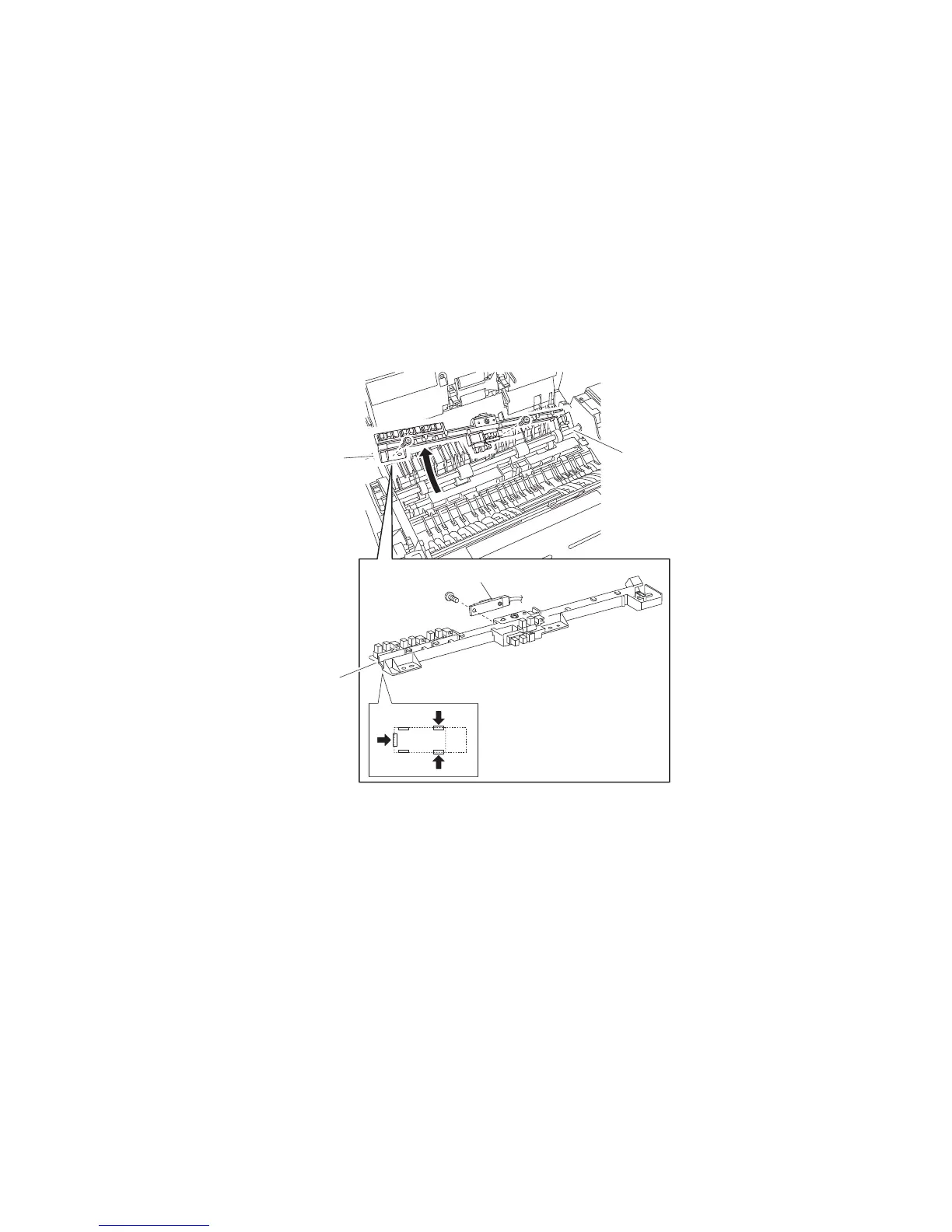

Sensor (ADF registration) removal
1. Open the ADF left cover assembly.
2. Lift the separation roll guide assembly to its uppermost position.
3. Remove the actuator/media guide assembly. See “Actuator/media guide assembly removal” on page 4-152.
4. Remove the two screws securing the sensor mount (A) to the ADF.
5. Slide the sensor mount (A) from the underside of the ADF transport roll (B), and move it to the position in which
the required sensor is easily removed.
6. Remove the screw securing the ADF registration sensor.
7. Disconnect the connector from the sensor (ADF registration).
8. Remove the sensor (ADF registration) (C).
The APS, pre-registration, and inverter sensors are removed in the same manner. Release the hook, disconnect the
connector, and remove the sensor.
B
A
C
A
