Repair information 4-11
7510

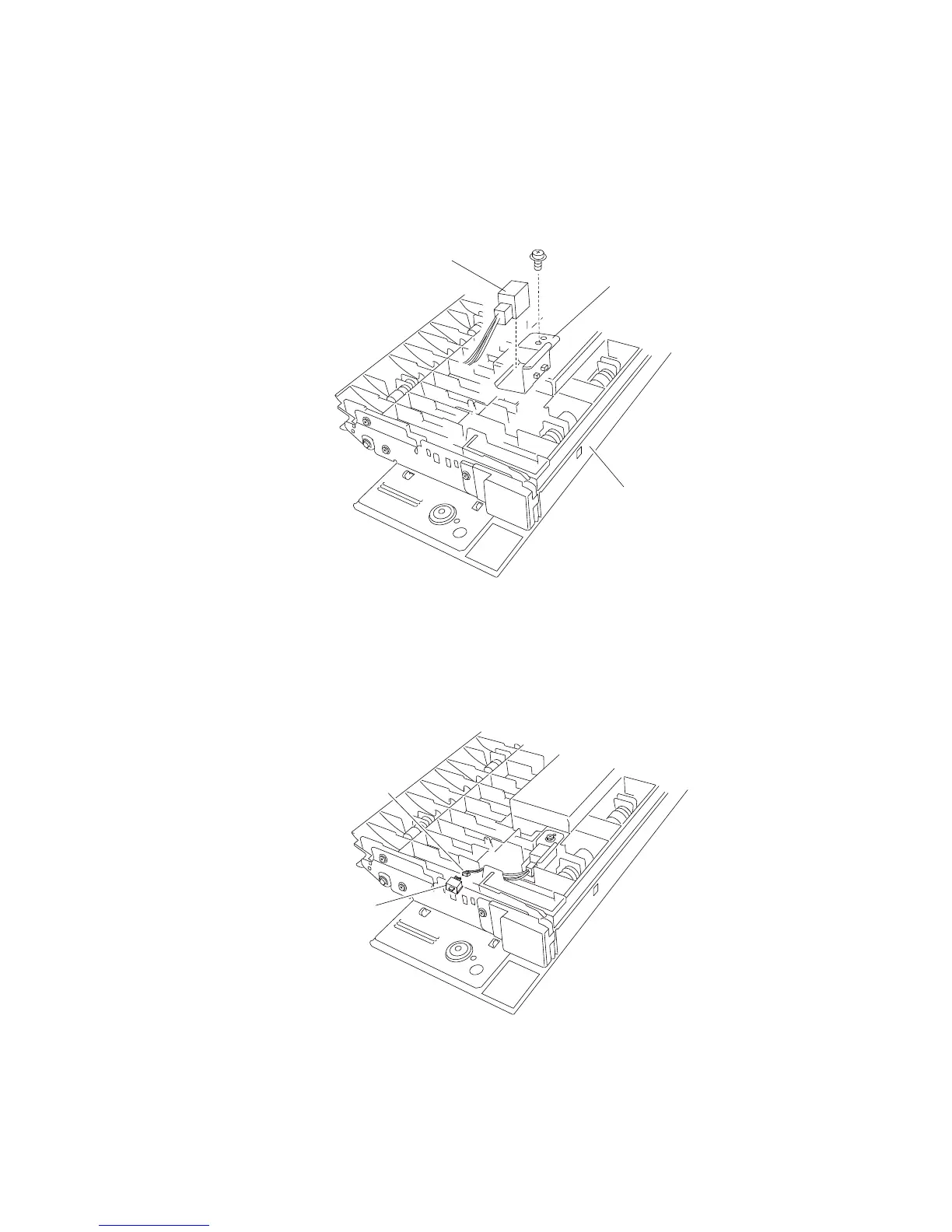

Sensor (duplex wait) removal
1. Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-10.
2. Remove the screw securing the bracket (A) to the duplex unit assembly (B).
3. Release the hooks securing the sensor (duplex wait) (C) to the bracket (A).
4. Remove the sensor (duplex wait) (C).
5. Disconnect the connector from the sensor (duplex wait) (C).
Switch (duplex left door interlock) removal
1. Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-10.
2. Release the hooks securing the switch (duplex left door interlock) (A).
3. Remove the switch (duplex left door interlock) (A).
4. Disconnect the connector from the switch (duplex left door interlock) (A).
C
A
B
Connector
A
