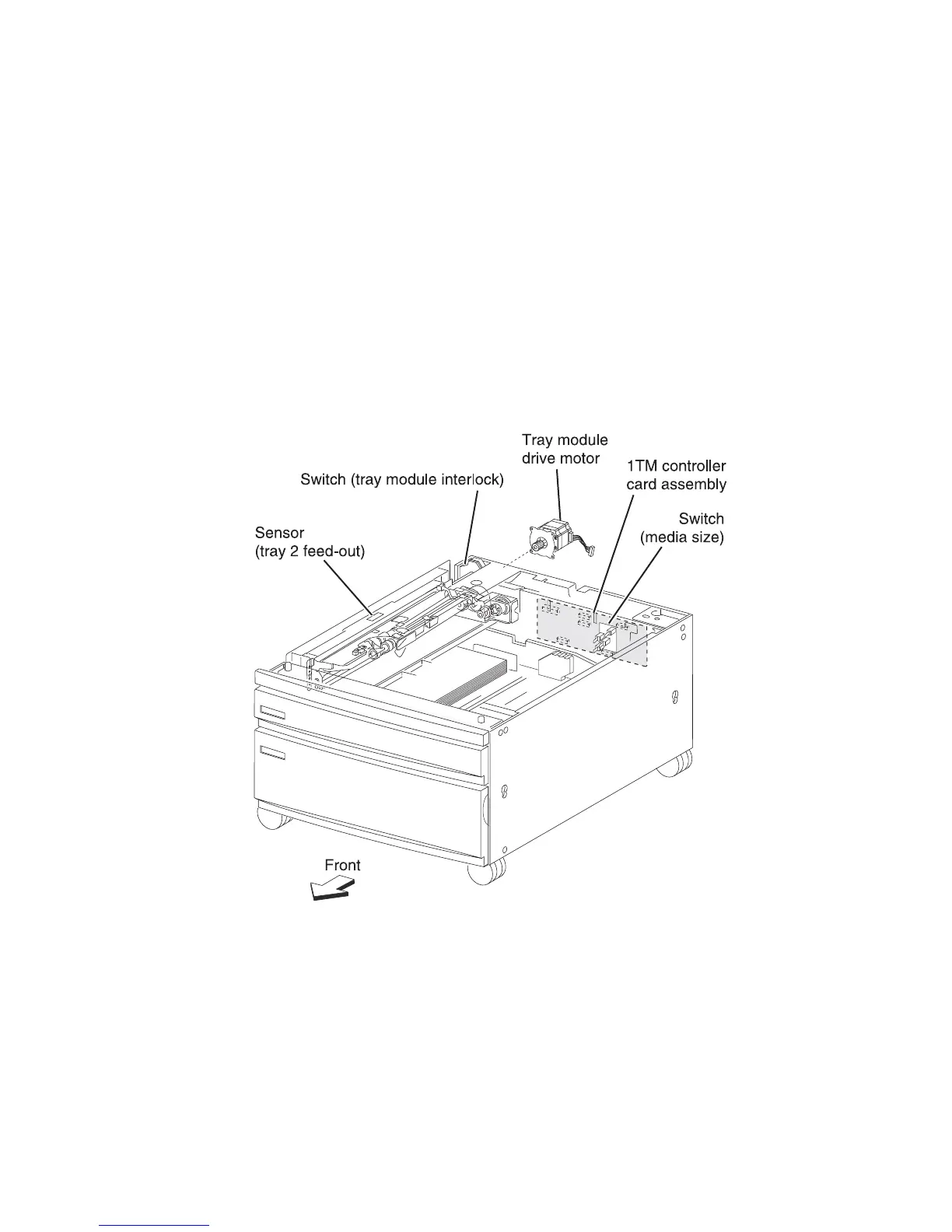

Sensor (tray 2 feed-out)
The sensor (tray 2 feed-out) detects media fed from the tray 2.
Tray module media transport roll assembly
The tray module transport roll assembly feeds media from the tray 2.
Tray module drive motor
This motor is used to drive the media transport mechanism in the tray module.
1TM controller card assembly
The 1TM controller card assembly, which contains a CPU, controls media feed in the 1TM upon receiving a
command from the upper printer engine card assembly and sensor/switch information.
